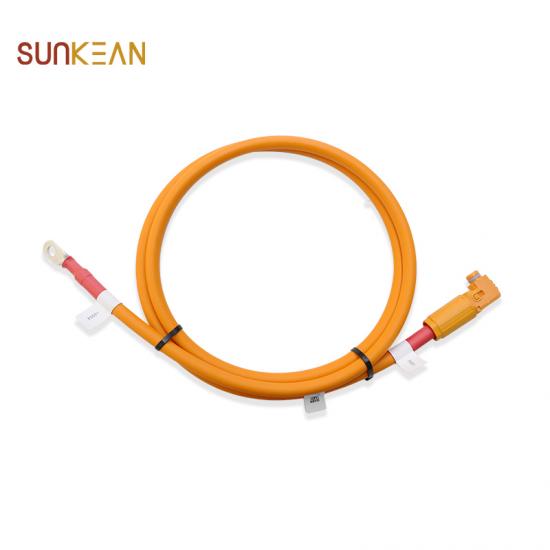

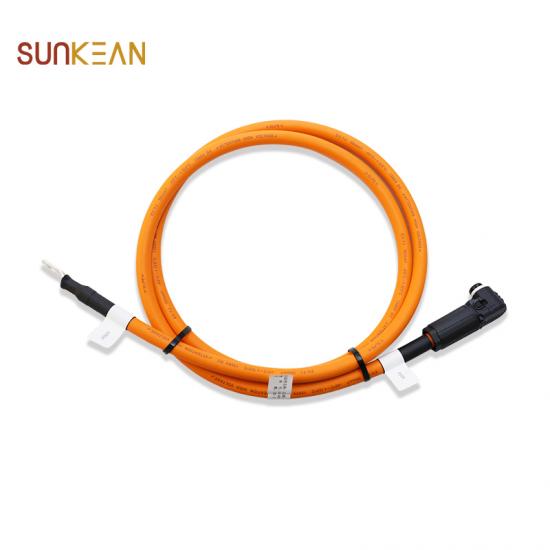

EV-YJ 50mm2 unshielded High Voltage cable for Electric Car
The insulation material adopts thermoset elastomer, without halogen, follow the development direction of environmental protection products, and has passed the single vertical combustion test, which has good flame retardancy and high cable safety and reliability.
Product Description:
Thermosetting elastomer
Conductor
Annealed soft bare copper
Insulation
Rated temperature
-40°C ~ +125°C, -40°C ~ +150°C
Rated voltage
1500V DC
According to
GB/T 25085/ISO6722
| Cable Name |
Cross Section (mm2) |
Construction (No./mm) |
Conductor Nom O.D. (mm) |
Insulation Thickness (mm) |
Insulation Nom O.D. (mm) |
Conductor Resistant Max(?/km) |
|
EV-YJ (UnShielded) |
1x4 | 133/0.20 | 2.66 | 0.80 | 4.30 | 4.71 |
| 1x6 | 190/0.20 | 3.42 | 0.80 | 5.10 | 3.14 | |
| 1x10 | 323/0.20 | 4.40 | 1.00 | 6.50 | 1.82 | |
| 1x16 | 513/0.20 | 5.70 | 1.00 | 7.90 | 1.16 | |
| 1x25 | 798/0.20 | 6.70 | 1.30 | 9.60 | 0.743 | |
| 1x35 | 1121/0.20 | 8.00 | 1.30 | 10.60 | 0.527 | |
| 1x50 |
1596/0.20 |
9.50 | 1.50 | 12.50 | 0.368 | |
| 1x70 | 2257/0.20 | 11.50 | 1.50 | 14.50 | 0.259 | |
| 1x95 | 1887/0.254 | 13.50 | 1.60 | 16.90 | 0.196 | |
| 1x120 | 2368/0.254 | 15.6 | 1.60 | 19.00 | 0.153 |
Advantages:
- Halogen free, follow the environment-friendly product's developing direction.
- Passed the test for vertical flame propagation, high class of flame retardance.
- The belding radius not less than five times the cable 5XOD, easy to install.
