          Waterproof

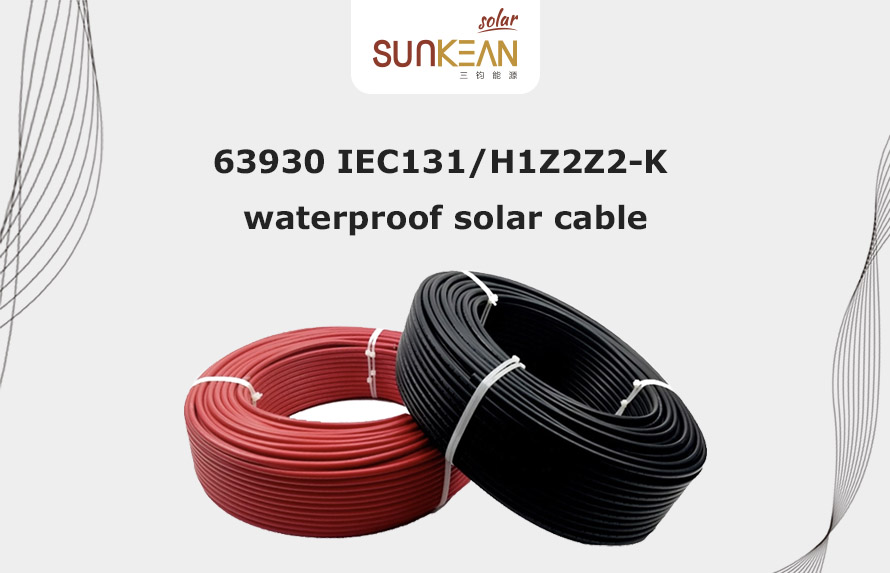

          TUV Certificate 62930 IEC131/H1Z2Z2-K 6mm2 DC waterproof Solar PV Cable

          SUNKEAN 6mm2 H1Z2Z2-K Single Solar Cable is anti-ultraviolet, anti-ozone, anti-crystallization and high temperature resistance, and the material will not melt or flow.
          • Item NO.:

            H1Z2Z2-K waterproof
          • Lead Time:

            1-2 weeks
          • Product Orgin:

            CHINA
          • Shipping Port:

            SHANGHAI , CHINA
          • Payment:

            T/T , L/C
          • Color:

            RED , BLACK
          • MOQ:

            1000
          • goods stock:

            500000
          • Rated Voltage:

            1500VDC
          • Product Detail

          TUV Certificate 62930 IEC131/H1Z2Z2-K 6mm2 DC waterproof Solar PV Cable

          SUNKEAN waterproof photovoltaic cable, compliant with EN50618 & IEC6293 standard, passed DIN VDE0285-525221/DIN EN50525-2-21 AnnexE, AD7 Protection level against water ingress test, can be used in humid environments, with good waterproof effect.


          6mm2 Solar Cable


          Product description:

          Voltage Rating(Uo/U)
          DC: 1500V
          Test Voltage
          6500V AC
          Temperature Rating

          Rated: -40°C to +90°C

          Max.conductor temp: +120°C

          Minimum Bending Radius


          fixed installation 5x outer ?


          Water Resistant

          DIN VDE0285-525221/DIN EN50525-2-21 AnnexE

          Protection level against water ingress

          AD7


          EN 50618 H1Z2Z2-K waterproof Solar Cable

          Cable Name
          Construction
          (No./mm)

          Inner Layer O.D.

          (mm)

          Outer Layer O.D.

          (mm)

          Conductor resistance

          Max (?/km)


          62930 IEC131/ H1Z2Z2-K


          78/0.295

          4.45±0.10

          6.10±0.15

          13.7


          Packing & Delivery:

          Solar Pv Cable Manufacturers


          Application Scenario:


          Global Exhibitions:


          Company Profile:

          SUNKEAN is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover panel solar system, solar cables, solar extension cables , home energy solar systems, Solar power fence, three phase inverters etc solar products .

          SUNKEAN is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.


          FAQ

          Q: How could i get the sample ?

          A: We have different kinds of XLPE insulation pv solar cable,photovoltaic cable,xlpe solar cable in stock, you can require for samples to check our quality.Samples are free provided, you only need to pay the courier fees.

          Q: How long is the delivery time?

          A1)For Sample: 1-3 Days;

          A2)For small Orders: 3-10 Days;

          A3)For mass Orders:15-20 Days;

          Q: What is your terms of payment ?

          A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment or against B/L.


          If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
