UL 11627 tinned copper stranded PVC insulated energy storage cable
▲Easy stripping and cutting
▲Good flexibility
▲High flamen retardant
Product Information:

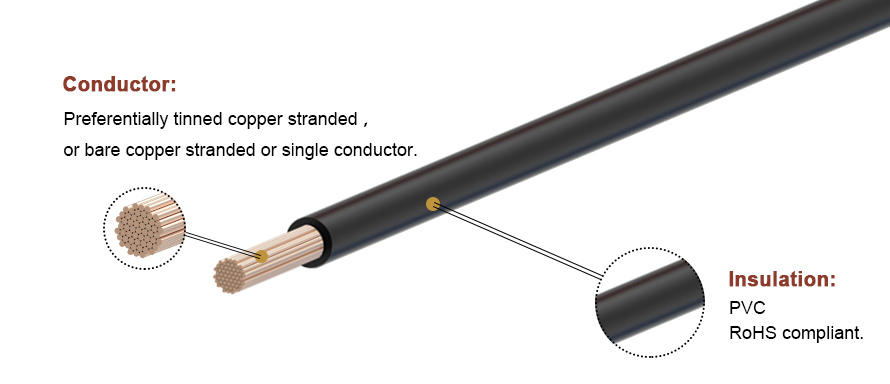

Preferentially tinned copper stranded ，or bare copper stranded or solid conductor
UL758，UL1581
Name
UL 11627 energy storage cable
Conductor
Insulation
PVC, passed RoHS
Rated voltage
2000V
Rated temperature
105°C
Reference Standard
Flame Test
UL VW-1 & CSA FT 1
| Cable Name |
Cross Section (AWG) |
Construction (No./mm) |
Conductor O.D. (mm) |
Insulation thickness (mm) |
Insulation O.D. (mm) |
Conductor Resistance Max (?/km,20°C) |
|
UL style 11627 |
24 | 11/0.16 | 0.61 | 0.76 | 2.20 | 94.20 |
| 22 |
17/0.16 |
0.76 |
0.76 |
2.40 |
59.40 | |
|
20 |
26/0.16 |
0.94 |
0.76 |
2.60 |
36.70 |
|
| 18 | 41/0.16 | 1.18 |
0.76 |
2.80 | 23.20 | |
| 16 | 42/0.2 | 1.49 |
0.76 |
3.10 | 14.60 | |
| 14 | 67/0.2 | 1.88 |
0.76 |
3.50 | 8.96 | |
| 12 | 105/0.2 | 2.36 |
0.76 |
4.00 | 5.64 | |
| 10 | 170/0.2 | 3.00 |
0.76 |
4.70 | 3.54 | |
| 9 | 212/0.2 | 3.70 |
0.76 |
5.40 | 2.81 | |
| 8 | 272/0.2 | 4.20 |
1.14 |
6.60 | 2.23 | |
| 7 | 340/0.2 | 4.70 |
1.14 |
7.10 | 1.768 | |
| 6 | 430/0.2 | 5.30 |
1.52 |
8.50 | 1.403 | |
| 5 | 532/0.2 | 5.80 |
1.52 |
9.10 | 1.113 | |
| 4 | 680/0.2 | 6.60 |
1.52 |
9.90 | 0.882 | |
| 3 | 859/0.2 | 7.50 |
1.52 |
10.80 | 0.6996 | |
| 2 | 1073/0.2 | 8.40 |
1.52 |
11.70 | 0.5548 | |
| 1 | 1350/0.2 | 9.40 |
2.03 |
14.00 | 0.4398 | |
|
1/0 |
1690/0.2 | 10.50 |
2.03 |
15.10 | 0.3487 | |
|
2/0 |
2146/0.2 | 11.90 |
2.03 |
16.50 | 0.2766 | |
| 3/0 | 2700/0.2 | 13.00 |
2.03 |
17.60 | 0.2194 | |
| 4/0 | 3405/0.2 | 14.70 |
2.03 |
19.30 | 0.1722 | |
|
250kcmil |
4060/0.2 |
16.00 |
2.41 |
21.40 | 0.1473 | |
|
300kcmil |
4835/0.2 |
17.50 |
2.41 |
22.90 |
0.1227 | |
|
350kcmil |
5610/0.2 |
18.90 |
2.41 |
24.30 |
0.1052 | |
|
400kcmil |
6446/0.2 |
20.20 |
2.41 |
25.60 |
0.09109 | |
|
450kcmil |
7285/0.2 |
21.50 |
2.41 |
26.90 |
0.08097 | |
|
500kcmil |
8060/0.2 |
22.60 |
2.41 |
28.00 |
0.07287 |
