XLPO insulated cable UL3173 tinned copper conductor electric cable for energy storage system
UL 3173 energy storage cables are preferably tinned copper stranded, or bare copper stranded or single conductor, insulated XLPO, passed RoHS, easy to strip, easy to cut.
XLPO material Energy Storage Cable UL3173 Information:

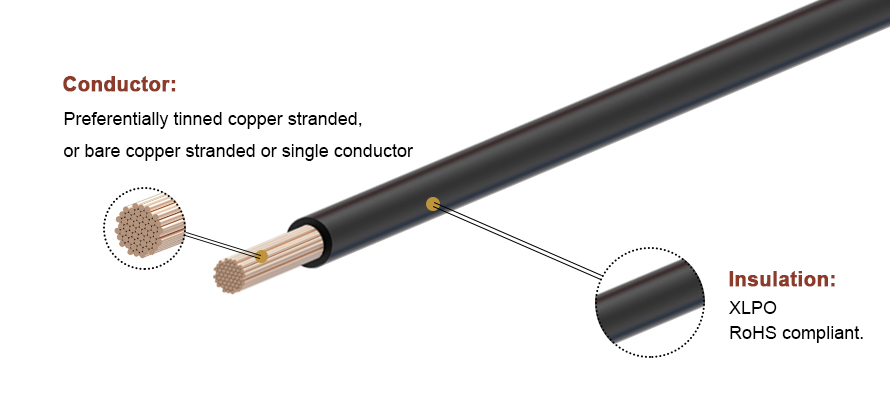

| Conductor |
Preferentially tinned copper stranded ，or bare copper stranded or single conductor |
|
Insulation |
XLPO, RoHS compliant |
|
Rated voltage |
600V |
|
Rated temperature |
125°C |
| Cable Name |
Cross Section (AWG) |
Construction (No./mm) |
Conductor O.D. (mm) |
Insulation thickness (mm) |
Insulation O.D. (mm) |
Conductor Resistance Max (?/km,20°C) |
| UL3173 | 26 | 7/0.16 | 0.48 | 0.76 | 2.10 | 150 |
| 24 | 11/0.16 | 0.61 |
0.76 |
2.20 | 94.2 | |
| 22 | 17/0.16 | 0.76 |
0.76 |
2.35 | 59.4 | |
| 20 | 26/0.16 | 0.94 |
0.76 |
2.55 | 36.7 | |
| 18 | 16/0.254 | 1.15 |
0.76 |
2.80 | 23.2 | |
| 16 | 26/0.254 | 1.50 |
0.76 |
3.15 | 14.6 | |
| 14 | 41/0.254 | 1.88 |
0.76 |
3.55 | 8.96 | |
| 12 | 65/0.254 | 2.36 |
0.76 |
4.05 | 5.64 | |
| 10 | 105/0.254 | 3.10 |
0.76 |
4.90 | 3.41 |

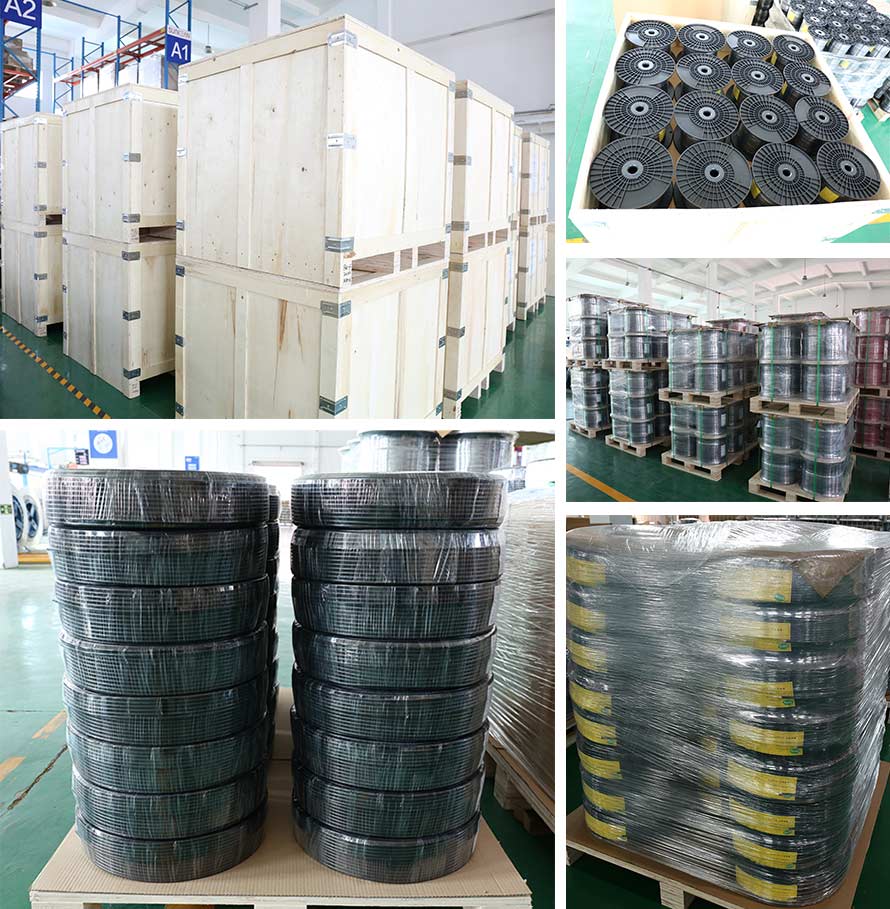

Packing:
