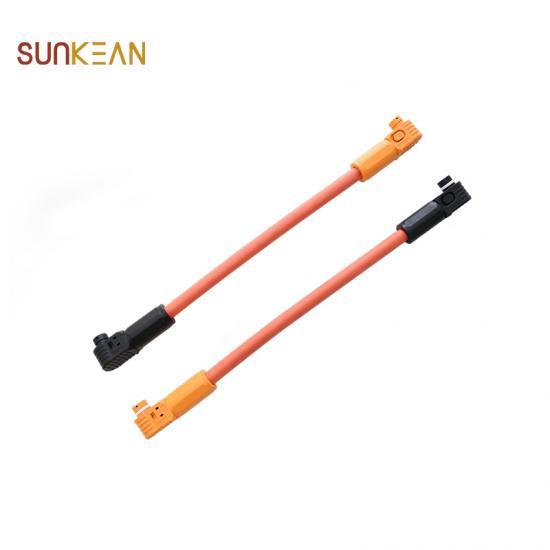

3000V XLPE cable UL3817 battery wire for energy storage system
▲Easy stripping and cutting
▲Good flexibility
▲High flamen retardant
▲High temperature resistance
▲UV resistant

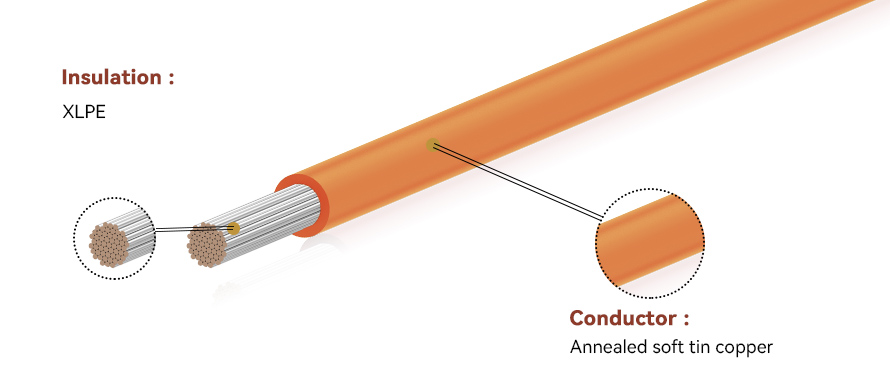

Product Information:
Annealed soft tin copper
UL758
Conductor
Insulation
XLPE
Rated voltage
3000Vac
Rated temperature
-40°C ~ +125°C
Reference Standard
Flame Test
UL VW-1
| Cable Name |
Cross Section (AWG) |
Construction (No./mm) |
Conductor O.D. (mm) |
Insulation thickness (mm) |
Insulation O.D. (mm) |
Conductor Resistance Max (?/km,20°C) |
|
UL style 3817 |
24 | 11/0.16 | 0.61 | 0.51 | 1.70 | 94.20 |
| 22 |
17/0.16 |
0.76 |
0.51 |
1.90 |
59.40 | |
|
20 |
26/0.16 |
0.94 |
0.51 |
2.10 |
36.70 |
|
| 18 | 41/0.16 | 1.18 |
0.51 |
2.30 | 23.20 | |
| 16 | 42/0.2 | 1.49 |
0.51 |
2.60 | 14.60 | |
| 14 | 67/0.2 | 1.88 |
0.51 |
3.00 | 8.96 | |
| 12 | 105/0.2 | 2.36 |
0.51 |
3.50 | 5.64 | |
| 10 | 170/0.2 | 3.20 |
0.51 |
4.40 | 3.54 | |
| 9 | 212/0.2 | 3.59 |
0.51 |
4.80 | 2.81 | |
| 8 | 272/0.2 | 4.10 |
0.51 |
5.30 | 2.23 | |
| 7 | 340/0.2 | 4.55 |
0.51 |
5.70 | 1.768 | |
| 6 | 430/0.2 | 5.13 |
0.51 |
6.30 | 1.403 | |
| 5 | 532/0.2 | 5.73 |
0.51 |
6.90 | 1.113 | |
| 4 | 680/0.2 | 6.48 |
0.51 |
7.70 | 0.882 | |
| 3 | 859/0.2 | 7.34 |
0.51 |
8.50 | 0.6996 | |
| 2 | 1073/0.2 | 8.36 |
0.51 |
9.50 | 0.5548 | |
| 1 | 1350/0.2 | 9.23 |
0.51 |
10.40 | 0.4398 | |
|
1/0 |
1690/0.2 | 10.33 |
0.51 |
11.80 | 0.3487 | |
|
2/0 |
2146/0.2 | 11.67 |
0.51 |
13.10 | 0.2766 | |
| 3/0 | 2700/0.2 | 13.10 |
0.51 |
14.60 | 0.2194 | |
| 4/0 | 3405/0.2 | 14.71 |
0.51 |
16.20 | 0.1722 |
Application:
