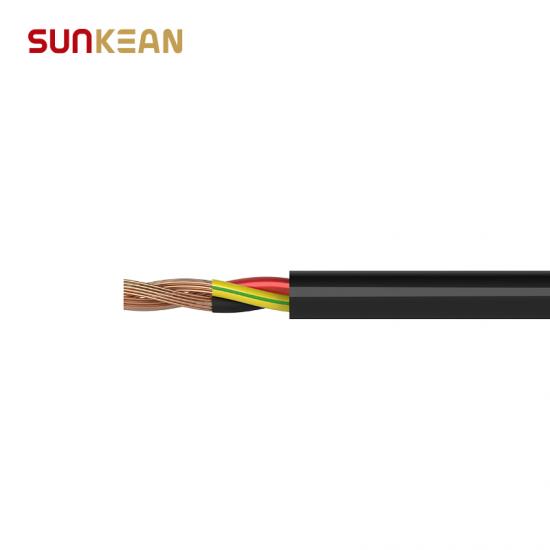

TC-ER 600V power and control tray cable ,UL1277&UL44 standard
The TC-ER power control tary cable is suitable for power, lighting, control and signal circuits, mostly used on cable trays or in cable slots, and outdoor places supported by slings. It can also be used in wind power generation, installed in the wind turbine, through the cable bridge or pipe laying.
Product description:
| Conductor: |
Multiple strands soft annealed copper wire |
| Insulation: |
Crosslink polyethylene compound, XLPO |
| Outer sheath: | Crosslink polyethylene compound, XLPO |
| Rated voltage: | 600V |
| Insulation color: |
Black, Red, Yellow/Green *other colours available on request |
| Outer sheath color: |
Black *other colours available on request |
|
Max. Conductor Operating Temperature: |
﹣40°C to 90°C |
|
Standards applied: |
UL1277, UL44, CSA, RoHs Compliant |
|
Conductor No. |
Cross Section
(mm2）
|
Construction
(No./mm)
|
Conductor Strands O.D. (mm) |
Insulation O.D.
(mm)
|
Cable O.D. (mm) |
Conductor resistance
Max (?/km)
|
|
2 |
18 |
16/0.254 |
1.17 |
2.80 |
8.4 |
21.8 |
| 16 |
26/0.254 |
1.49 |
3.10 |
9.0 |
13.7 |
|
| 14 |
41/0.254 |
1.87 |
3.50 |
9.8 |
8.62 |
|
| 12 |
65/0.254 |
2.36 |
4.00 |
10.8 |
5.43 |
|
| 10 |
105/0.254 |
3.00 |
4.60 |
12.0 |
3.409 |
|
| 3 | 18 |
16/0.254 |
1.17 |
2.80 |
8.8 |
21.80 |
| 16 |
26/0.254 |
1.49 |
3.10 |
9.6 |
13.70 |
|
| 14 |
41/0.254 |
1.87 |
3.50 |
10.4 |
8.62 |
|
| 12 | 65/0.254 | 2.36 | 4.00 | 11.5 | 5.43 | |
| 10 | 105/0.254 | 3.00 | 4.60 | 12.8 | 3.409 | |
| 4 | 18 | 16/0.254 | 1.17 | 2.80 | 9.6 | 21.80 |
| 16 | 26/0.254 | 1.49 |
3.10 |
10.4 | 13.70 | |
| 14 | 41/0.254 | 1.87 |
3.50 |
11.4 | 8.62 | |
| 12 | 65/0.254 | 2.36 |
4.00 |
12.6 | 5.43 | |
| 10 | 105/0.254 | 3.00 |
4.60 |
14.0 | 3.409 | |
| 5 |
18 |
16/0.254 | 1.17 | 2.80 | 10.6 | 21.80 |
|
16 |
26/0.254 | 1.49 | 3.10 | 11.5 | 13.70 | |
| 14 |
41/0.254 |
1.87 | 3.50 | 12.6 | 8.62 | |
| 12 | 65/0.254 |
2.36 |
4.00 | 14.6 | 5.43 | |
| 10 | 105/0.254 | 3.00 | 4.60 | 16.2 | 3.409 |
Packing & Delivery:
Application Scenario:
Global Exhibitions:
Company Profile:
SUNKEAN is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover panel solar system, solar cables, solar extension cables , home energy solar systems, Solar power fence, three phase inverters etc solar products .SUNKEAN is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.
FAQ
Q: How could i get the sample ?
A: We have different kinds of XLPE insulation pv solar cable,photovoltaic cable,xlpe solar cable in stock, you can require for samples to check our quality.Samples are free provided, you only need to pay the courier fees.
Q: How long is the delivery time?
A1)For Sample: 1-3 Days;
A2)For small Orders: 3-10 Days;
A3)For mass Orders:15-20 Days;
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment or against B/L.
If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
