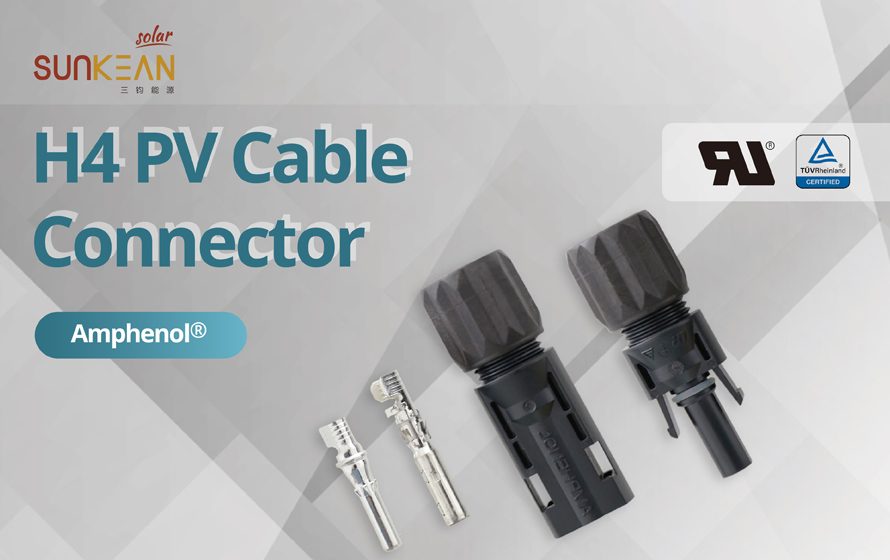

Solar Panel 1500V 1000V IP68 Waterproof H4 Connector
H4 PV connector includes the excellent durability, Amphenol’s low resistance RADSOK® contact technology, ability to accept wire gauges from 14AWG/2.5mm2 to 10AWG/6mm2, and an IP68 rating.
Technical Data:
|
Rated Voltages |
1500V DC (UL) / 1000V DC (TüV) |
|
Rated Currents |
15A(14AWG), 20A(12AWG), 30A(10AWG) 25A(2.5mm2),35A(4mm2), 45A(6mm2) |
| Test Voltage |
6kV for 1 minute, 10kV impulse (1.2/50μS)(IEC) |
| Typical Contact Resistance |
≤0.3mΩ |
|
Contact Material |
Tin-plated Copper |
|
Contact System Options |
Machined/Cold-formed (CF) or Stamped & Formed (S&F) |
|
Locking Mechanism |
Meets NEC NFPA 70, 690.33 (C) requirement for self-locking with tool-required unlock |
|
Cabe OD Range |
?4.5mm to ?7.8mm |
| Cable Size |
2.5mm2/14AWG, 4mm2/12AWG, 6mm2/10AWG |
|
Cable Strain Relief |
Compression gland featuring a torque-limiting, anti-backspin, ratcheting gland nut |
|
Ingress Protection Ratings |
IP68, mated (1 meter, 1 hour) |
|
Ambient Temperature Range |
-40oC to +85oC |
|
Flammability Classification |
UL 94 V-0 |
Product Features:
- Amphenol’s patented RADSOK technology
- Secure cable sealing with ratcheting lock feature
- UL 1500V, TüV 1000V DC approved
- Meets all 2008/2011 NEC handbook requirements
- Quick and easy secure snap lock mating, per 2014 NEC handbook, paragraph 690.33(C)
- Simple unlocking tool meets NEC requirements
- Long-term UV resistance
- Low contact resistance
- Ready for field assembly
