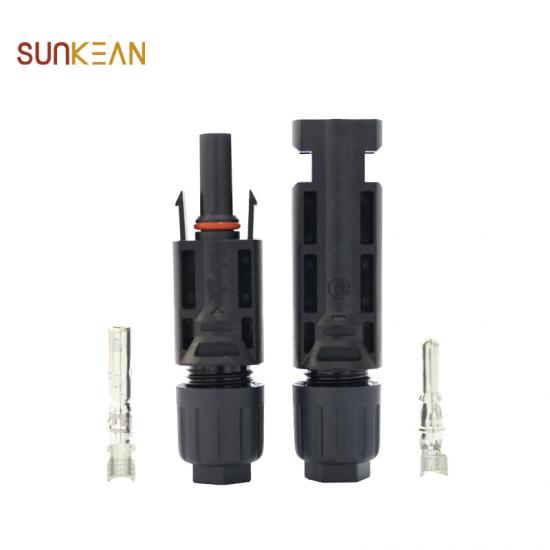

Outdoor male female plug 2 pin waterproof connector
The PV connector is suitable for solar cable 2.5mm2,4mm2 and 6mm2 in solar connection project，quickly and reliable connection of the solar cables to the photovoltaic system(solar panels, converters).
Product Information:
|
Certification standards |
Certification standards IEC 62852&UL6703 |
|
Rated Current |
30A(TUV) 20A(UL) |
|
Rated Voltage |
TUV 1500V DC UL1500V DC |
|
Protection Degree |
IP67 |
|
Safety Class |
Class A |
|
Flame Class |
UL94-V0 |
| Cable Specification |
2.5~6mm2/12AGW |
|
Ambient Temperature |
-40℃~＋90℃ |
|
Contact Resistance |
≤0.5mΩ |
|
Contact Material |
Copper,Tin-plated |
|
Insulation Material |
PC/PA |
Product features:
- The installation method of this type is easy, convenient and safe.
-
It applies unique rear-insert way to assemble. This product is applicable to cables with different diameters.
-
The innovative design of positive and negative terminal structure makes the contact resistance of contact area less than 0.2 mΩ. The structure of conducting ring is made of imported copper through stamping process.
- It is able to carry very high current and withstand high voltage.
- Strong self-locking function meets the requirement of pull-out force.
- It has strong shock resistance function.
- With excellent sealing design, the degree of dustproof and waterproof can reach IP67.
- The superior resin material we used not only meet fireproofing grade of UL94-V0, it also added anti-aging and ultraviolet resistance function. Thus the product can be used outdoor for a long time.
Packing & Delivery:
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Global Exhibitions:
Company Profile:
SUNKEAN is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover PV modules,waterproof solar PV cable connector, solar pv cable , PV connectors, Japanese standard solar cable, photovoltaic inverter etc solar products .SUNKEAN is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.
FAQ
Q: How could i get the sample ?
A: We have Solar PV cable connector in stock, you can require for samples to check our quality.Samples are free provided, you only need to pay the courier fees.
Q: How long is the delivery time?
A1)For Sample: 1-3 Days;
A2)For small Orders: 3-10 Days;
A3)For mass Orders:15-20 Days;
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment or against B/L.
If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
