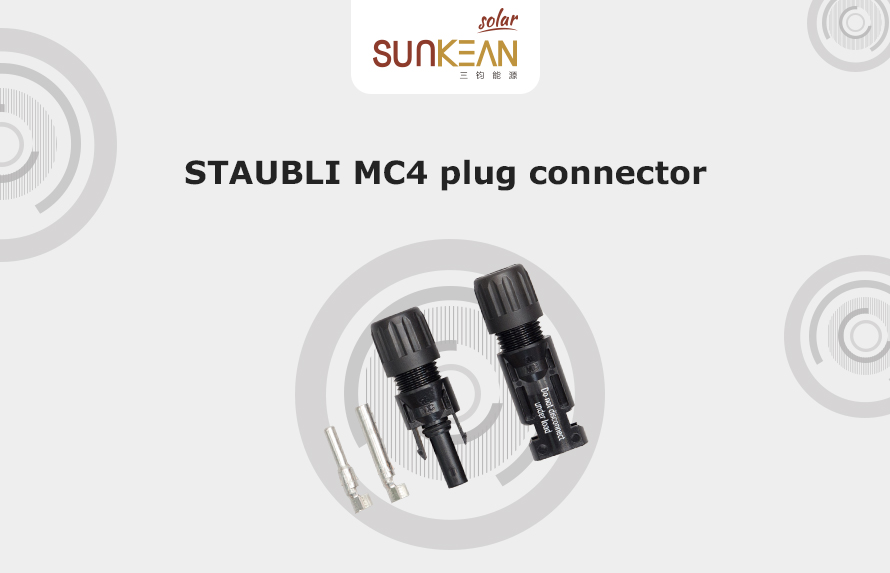

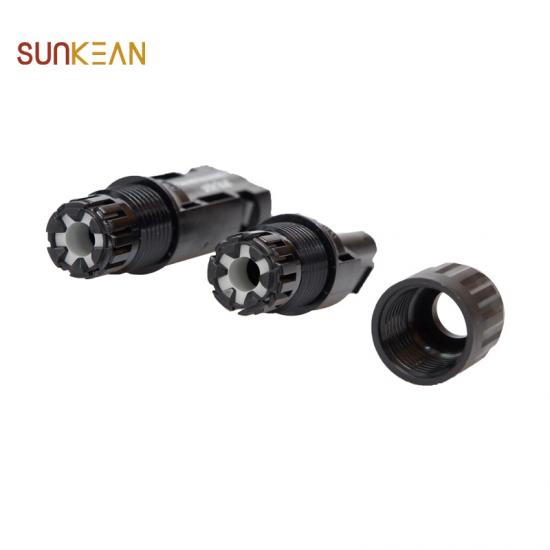

STAUBLI MC4 plug PV connector
Successfully connected to the global 150GW photovoltaic power station;The original industry standard;Waterproof IP68 rating;Owns TUV/UL/JET/CSA/CQC certification.
Product Description:
|
Item |
MC4 plug connector |
|
Connector system |
?4 mm |
|
Rated voltage |
1000V DC (IEC 62852) |
|
Rated current |
22.5A (2.5mm2）39A(4mm2/6mm2） |
|
Rated impulse voltage |
12kV (1000V DC TüV) |
|
Ambient temp range
|
-40°C~+85°C(TüV) |
|
Upper limiting temp |
105°C(TüV) |
|
Degree of protection, mated unmated |
IP65,IP68 (1h/1m) |
|
Overvoltage category/Pollution degree |
CATIII/3 |
|
Contact resistance of plug connectors |
≤0.25m? |
|
Safety class |
1000v DC :II |
|
Contact system |
MULTILAM |
|
Type of termination |
Crimping |
|
Contact material |
copper ,tin plated |
|
Insulation material |
PC/PA |
|
Flame class |
UL94-V0 |
|
Certification |
 |
Product Features:
------Outstanding reliability;
------Consistently low contact resistance;
------Low service cost & reduced downtime;
------Elimination of risks for hotspots & fire;
------Low power losses;
------Lifetime > 25 years;
------TüV & UL double approval;
------Applicable for harsh environment outside;
------Use male & female self-block, easy to lock & unlock.
Packing & Delivery:
Application Scenario:
Global Exhibitions:
Company Profile:
SUNKEAN is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover PV modules, solar cables, solar extension cables , PV connectors, solar panel system, solar energy panel for home etc solar products .SUNKEAN is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.
FAQ:
Q: How could i get the sample ?
A: We have different kinds of XLPE insulation pv solar cable,photovoltaic cable,xlpe solar cable in stock, you can require for samples to check our quality.Samples are free provided, you only need to pay the courier fees.
Q: How long is the delivery time?
A1)For Sample: 1-3 Days;
A2)For small Orders: 3-10 Days;
A3)For mass Orders:15-20 Days;
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment or against B/L.
If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
