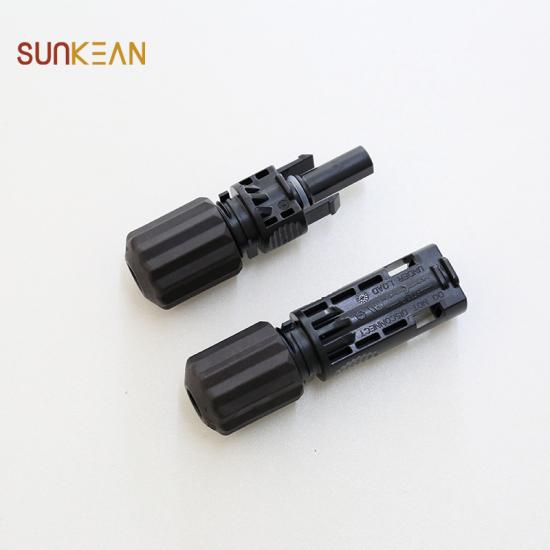

Male & Female H4 Plus 1500V Dual Certified DC Solar Connectors
H4 Plus PV connector includes the excellent durability, Amphenol’s low resistance RADSOK® contact technology, ability to accept wire gauges from 14AWG/2.5mm2 to 8AWG/10mm2, and an IP68 rating.
Technical Data:
|
Rated Voltages |
1500V per UL 6703 / IEC 62852, class A |
|
Rated Currents |
15A(14AWG), 20A(12AWG), 30A(10AWG), 50A(8AWG) 25A(2.5mm2),35A(4mm2), 45A(6mm2), 65A(10mm2) |
| Typical Contact Resistance |
~0.20mΩ using Amphenol’s low resistance RADSOK® contact technology |
|
Contact Material |
Tin-plated Copper Alloy, for excellent corrosion resistance and conductivity |
|

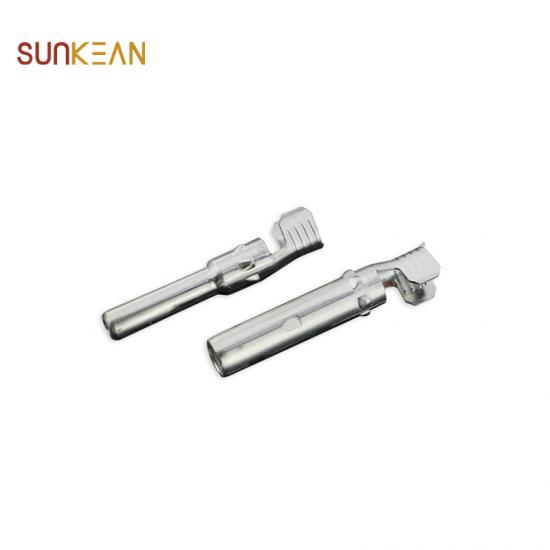

Contact System Options |
Machined/Cold-formed (CF) or Stamped & Formed (S&F) |
|
Locking Mechanism |
Meets NEC NFPA 70, 690.33 (C) requirement for self-locking with tool-required unlock (no seperate parts/sleeves needed) |
|
Cabe OD Range |
?5.0mm to ?8.7mm |
| Cable Size |
2.5mm2/14AWG, 4mm2/12AWG, 6mm2/10AWG, 10mm2/8AWG |
|
Cable Strain Relief |
Compression gland featuring a torque-limiting, anti-backspin, ratcheting gland nut |
|
Ingress Protection Ratings |
IP68, mated (1 meter, 24 hour) & IP2X touch-proof (reverse gender design) |
|
Ambient Temperature Range |
-40oC to +85oC |
|
Enviornmental Ratings |
Flammability Classification: UL 94 V-0 |
|
UV Resistance |
|
|
Outdoor suitable (f1) rated materials, per UL 746C |
|
|
Intermatibility |
Guaranteed to mate with all of the latest Amphenol PV connectors, regardless of gauge, style, or product line |
|
Material Safety |
RoHS, REACH compliant |
Product Features:
- Amphenol’s patented RADSOK technology
- Maximum operating temperature of 120°C
- Secure cable sealing with ratcheting lock feature
- Dual-certified at 1500V DC to UL 6703 & IEC 62852
- High-performance polymer material, more reliable, durable, and stable over lifetime
- Excellent thermal shock performance exceeds UL requirements
- Higher current ratings, lower temperature rise and contact resistance
- Accepts wire gauges from 14 AWG/2.5mm2 to 8 AWG/10.0mm2
- IP68 rating 24 hours at 1 meter
