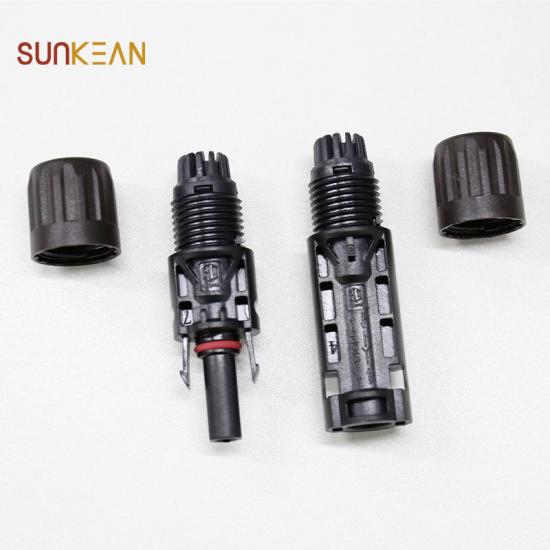

Solar PV 1500V Connectors for 4mm2 Solar Cable
The Solar Panel Connector can be suitable for solar wires 4mm2/12AWG. The advantage is the quick and reliable connection, UV resistance, and IP67 waterproof can be working outdoor for 25years.
Product Information:
| Model No. | C2 series | Rated System Voltage |
1500V(C2 or LJ-01-TUV) 1500V(LJ-01-UL) |
| Degree of Protection | IP65/IP68(1m,1h) | Rated Current |
30A(C2 or LJ-01-TUV) 30A(LJ-01-UL) |
| Pollution Degree | Class II | Dielectric Strength | 8KV AC(TUV) |
| Temperature Range |
-40℃~+85℃ |
Cable Wire Size |
1*4mm2(TUV) 12AWG(UL) |
|
Cables diameter Range |
5.5-6.6mm | Screw nut Material | PA |
| Housing Material | PPE | Seal Material | Silicone |
| Terminal Material | Copper |
|
|
Product Features:
------Ease of Use
*Designed for a wide range of DC applications.
*Simple plug-and-play.
*Auto-lock equipment of male and female points render connections easy and reliable.
------Safe
*Insulation material PPE.
*High current-carrying capacity
*Protection Class II
*Connector adopts touch and insertion of reed with inner-knob type
Packing & Delivery:
Application:
Global Exhibitions:
Company Profile:
SUNKEAN is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover PV modules, solar cables, solar extension cables , solar energy off grid, solar hot water panels, inverters etc solar products .SUNKEAN is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.
FAQ:
Q: How could i get the sample ?
A: We have different kinds of XLPE insulation pv solar cable, photovoltaic cable, xlpe solar cable, multiple specifications of solar connectors in stock, you can require for samples to check our quality.Samples are free provided, you only need to pay the courier fees.
Q: How long is the delivery time?
A1)For Sample: 1-3 Days;
A2)For small Orders: 3-10 Days;
A3)For mass Orders:15-20 Days;
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment or against B/L.
If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
