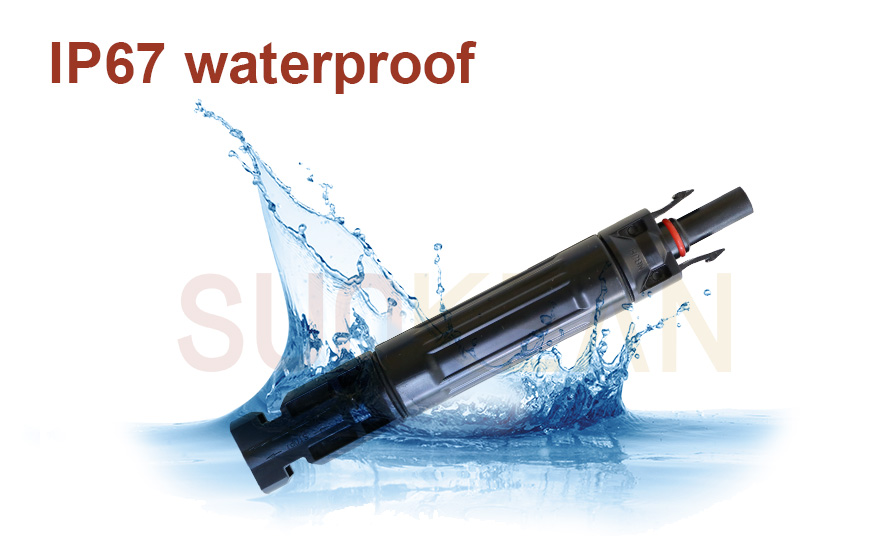

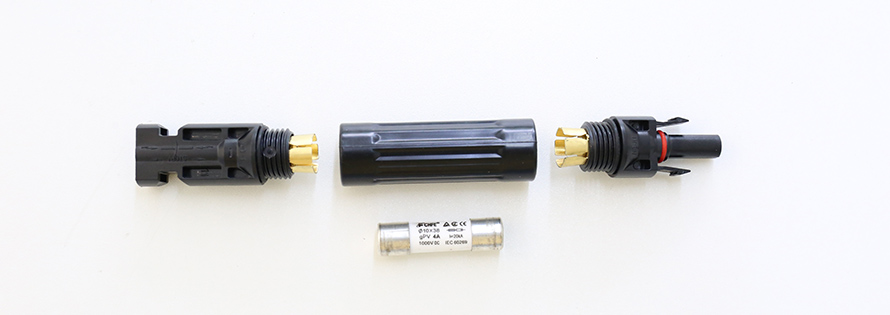

Waterproof high quality Solar DC PV fuse holder 4A PV solar fuse connector
Fuse Connector is compatible with MC4, and suitable to solar cable, 2.5mm, 4mm and 6mm. Advantage is the inline fuse can be replaced, quickly and reliable connection,UV resistance and IP67 waterproof, can be working outdoor for many years.
Product Information:
| Rated current |
4 Amp |
|
Applicable temperature range |
-40°C~+85°C |
|
Rated voltages |
1000V DC |
| Degree of protection | IP67 |
| Contact resistance |
≤0.5mΩ |
|
Contact material |
Copper with tin plated |
|
Insulation material |
PPO |
|
Locking system |
Snap-in (nur / only MC4) |
|
Flame class |
UL94-HB / UL94-V0 |
|
Applicable wire size |
2.5 to 6.0mm2 |
|
Protection class |
II |
|
Application class |
Class A |
|
Diode/Fuse type |
Schottky PV fuse |
Product Features:
------Ease of Use
*Compatible with PV cables with different insulation diameters.
*Designed for a wide range of DC applications.
*Simple plug-and-play.
*Auto-lock equipment of male and female points render connections easy and reliable.
------Safe
*Waterproof – IP67 Class Protection.
*Insulation material PPO.
*High current-carrying capacity
*Protection Class II
*Connector adopts touch and insertion of reed with inner-knob type
Packing & Delivery:
