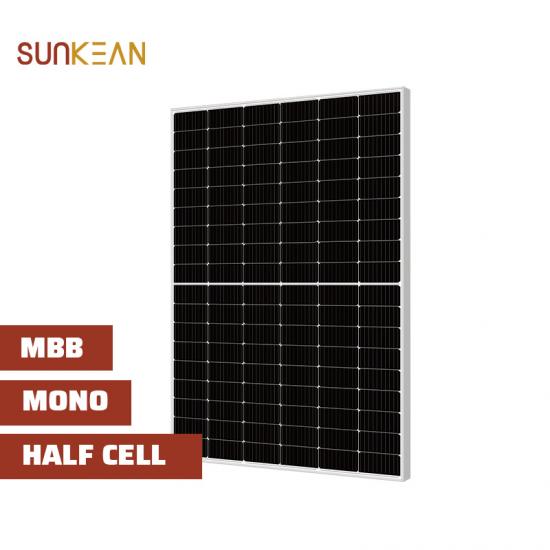

Mono 410W 182 Half Cell MBB high efficiency Solar panel
MBB half cell mono solar panel 410w all with A Grade for on-grid & off-grid use for residential and public rooftop& ground mounting PV?Power System.
Product Characteristics:
| Mechanical Characteristics | |
| Cell Type | Mono 182*91mm |
| No.of Half-cells | 108 [2x(9x6)] |
| Dimensions | 1722 x 1134 x 30&35mm |
| Weight | 19.5 kg |
| Glass |
High transmission glass 3.2mm |
| Junction Box | IP68, 3 Bypass-Diode |
| Cable |
4mm2/300mm or customized length |
| Connector |
MC4 compatible |
Product Parameter:
| Type | SKE390S8-108 | SKE395S8-108 | SKE400S8-108 | SKE405S8-108 | SKE410S8-108 |
|
Electrical Characteristics (STC*) : |
|||||
| Power Output (Wp) | 390 | 395 | 400 | 405 | 410 |
| Max Power Tolerance (W) | 0-5 | 0-5 | 0-5 | 0-5 | 0-5 |
| Module Efficiency | 19.9 | 20.2 | 20.5 | 20.7 | 21.0 |
| Voltage Mpp-Vmpp (V) | 30.59 |
30.76 |
30.98 | 31.23 | 31.44 |
| Current Mpp-Impp (V) | 12.75 | 12.84 | 12.91 | 12.97 | 13.04 |
| Voltage Open Circuit-Voc (V) | 36.67 | 36.91 | 37.10 | 37.33 | 37.58 |
| Short Circuit Current-Isc (A) | 13.63 | 13.71 | 13.80 | 13.87 | 13.94 |
|
Electrical Characteristics (NMOT*) : |
|||||
| Power Output (Wp) | 299.61 | 303.45 | 307.29 | 311.13 | 314.98 |
| Voltage Mpp-Vmpp (V) | 27.88 | 28.04 | 28.24 | 28.46 | 28.66 |
| Current Mpp-Impp (A) | 10.75 | 10.82 | 10.88 | 10.93 | 10.99 |
| Voltage Open Circuit-Voc (V) | 33.86 | 34.08 | 34.25 | 34.47 | 34.70 |
| Short Circuit Current-Isc (A) | 11.59 | 11.66 | 11.73 | 11.79 | 11.85 |
| Max System Voltage (V DC) | 1500V | ||||
|
Operating Temperature(°C) |
-40°C ~ +85°C | ||||
|
Max Series Fuse Rating |
25A | ||||
*STC: Irradiance 1000 W/m2, Environment Temperature 25°C, Air Mass AM1.5
*NMOT: Irradiance 800 W/m2, Environment Temperature 20°C, Air Mass AM1.5
Product Features:
- ISO9001:2015 Quality Management system
- ISO14001:2015 Environmental Management System
- ISO45001:2018 Occupational Health and Safety Management System
- Higher output power
- Module efficiency up to 21.0%
- Lower temperature coefficient
- Lower LCOE (Levelized Cost Of Energy)
- High Power output lead to lower BOS cost
- Excellent Wind Load 2400Pa&Snow Load 5400Pa Under Certain Installation Method
- Salt Mist Corrosion Protect
- Excellent Potential Induced
- Degradation Resistance
- Ammonia Resistance
Solar panel production process:
Packing & Delivery:
Application Scenario:
Company Profile:
SUNKEAN is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover Mono perc solar panel,house solar power system, home solar panel , PV connectors, 100 watt solar panel, photovoltaic inverter etc solar products .SUNKEAN is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.
If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
