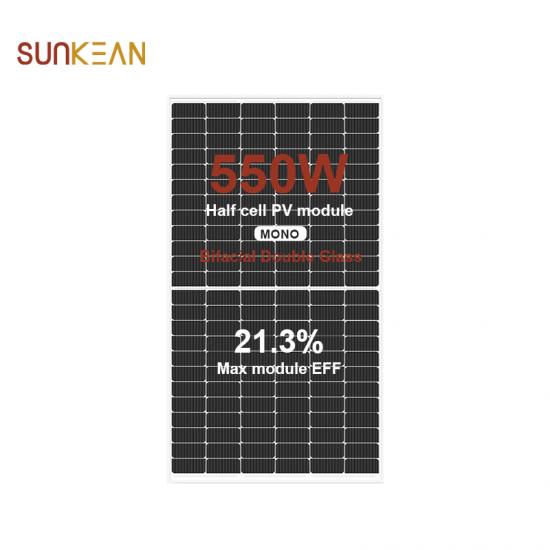

182mm Cell Size 550W 144cells half cut mono bifacial PV modules
This module adopts bifacial double-glass with frame which provides exceptional strength for higher load capacity. The Module efficiency can up to 21.3%.
Product Information:
| Electrical Characteristics(STC*) | |||||
| Type | SKE530S8-144GA | SKE535S8-144GA | SKE540S8-144GA | SKE545S8-144GA | SKE550S8-144GA |
| Power Output (Wp) | 530 | 535 | 540 | 545 | 550 |
| Max Power Tolerance (W) | 0-5 | 0-5 | 0-5 | 0-5 | 0-5 |
| Module Efficiency | 20.5 | 20.7 | 20.9 | 21.1 | 21.3 |
| Voltage Mpp-Vmpp (V) | 41.28 | 41.51 | 41.70 | 41.92 | 42.11 |
| Current Mpp-Impp (A) | 12.84 | 12.89 | 12.95 | 13.00 | 13.06 |
| Voltage Open Circuit-Voc (V) | 49.61 | 49.87 | 49.95 | 50.04 | 50.28 |
| Short Circuit Current-Ist (A) | 13.66 | 13.72 | 13.78 | 13.84 | 13.90 |
| Operating Module Temperature | -40 °C to +85 °C | ||||
| Maximum System Voltage | 1500 V DC | ||||
| Maximum Series Fuse Rating | 30 A | ||||
STC:Irradiance 1000 W/m2, module temperature 25 °C, AM=1.5；
|
Electrical Characteristics(NMOT*) |
|||||
| Type | SKE530S8-144GA | SKE535S8-144GA | SKE540S8-144GA | SKE545S8-144GA | SKE550S8-144GA |
| Power Output (Wp) | 407.16 | 411.01 | 414.85 | 418.69 | 422.53 |
| Voltage Mpp-Vmpp (V) | 37.62 | 37.83 | 38.01 | 38.21 | 38.39 |
| Current Mpp-Impp (A) | 10.82 | 10.86 | 10.91 | 10.96 | 11.01 |
| Voltage Open Circuit-Voc (V) | 45.80 | 46.04 | 46.12 | 46.20 | 46.42 |
| Short Circuit Current-Isc (A) | 11.61 | 11.66 | 11.72 | 11.77 | 11.82 |
Electrical Characteristics With 10% Rear Side Power Gain
Power Output
583
589
594
600
605
Voltage Mpp-Vmpp (V)
41.28
41.51
41.70
41.92
42.11
Current Mpp-Impp (A)
14.12
14.18
14.25
14.30
14.37
Voltage Open Circuit-Voc (V)
49.61
49.87
49.95
50.04
50.28
Short Circuit Current-Isc (A)
15.03
15.09
15.16
15.22
15.29
| Mechanical Characteristics | |
| Solar Cell | Mono 182*91 mm |
| No. of Cells | 144 [2x (12x6)] |
| Dimensions | 2278 X 1134 X 35 mm |
| Weight | 32.5 kg |
| Front / Back Glass |
2.0 mm heat strengthened glass |
| Junction Box | IP68 rated (3 bypass diodes) |
| Cable |
4mm2/300mm or customized |
| Connector | MC4 compatible |

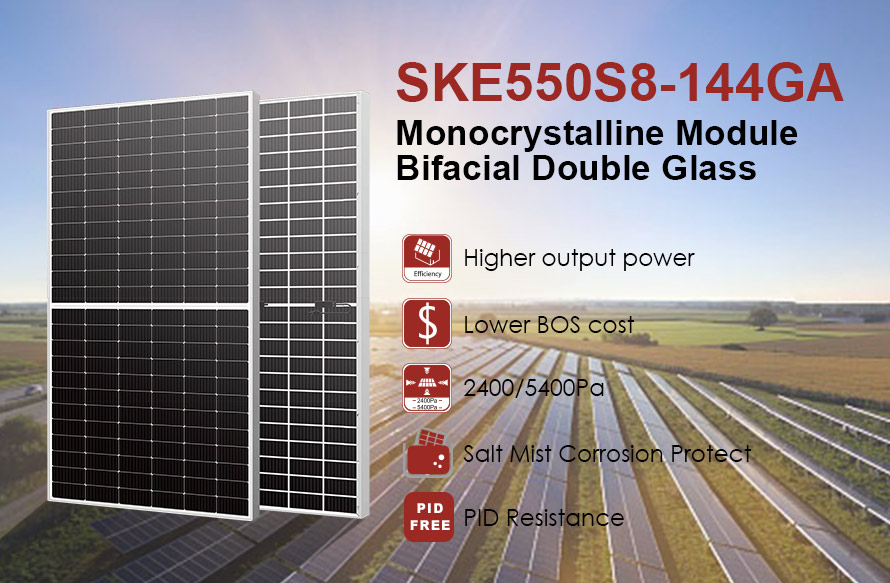

Product Features:
- ISO9001:2015 Quality Management system
- ISO14001:2015 Environmental Management System
- ISO45001:2018 Occupational Health and Safety Management System
- Higher output power
- Module efficiency up to 21.3%
- Lower temperature coefficient
-
Up to 30% additional power gain from back side depending on albedo
- Lower LCOE (Levelized Cost Of Energy)
- High Power output lead to lower BOS cost
- Excellent Wind Load 2400Pa & Snow Load 5400Pa Under Certain Installation Method
- Salt Mist Corrosion Protect
- Excellent Potential Induced
- Degradation Resistance
- Ammonia Resistance
