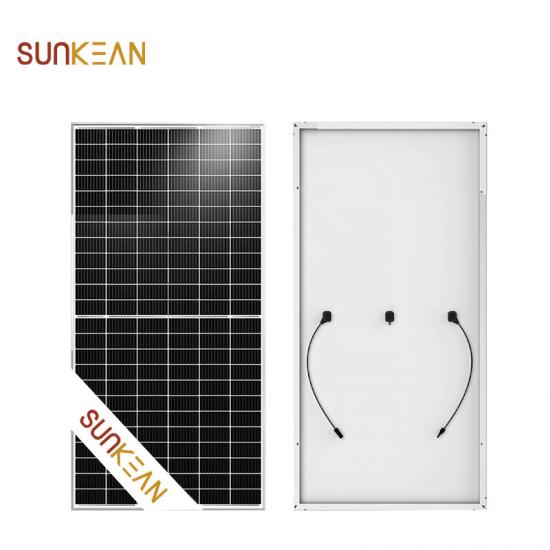

Photovoltaic 72Cell 400Watt Mono PERC Half Cut PV Panels
72Cell 400Watt half cell mono perc solar panel?325w all with A Grade for on-grid & off-grid use for residential and public rooftop& ground mounting PV?Power System.
Product Information:
| Mechanical Characteristics | |
| Cell Type | Mono PERC 158.75x158.75mm |
| No.of Half-cells | 144 (6x24) |
| Dimensions | 2008x 1002x40mm (79.06x39.45x1.57 inch) |
| Weight | 22.5 kg (49.6 lbs) |
| Front Glass | 3.2mm, Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP67 Rated |
| Output Cables | TUV 1x4.0mm2, (+) 290mm,(-) 145mm or Customized Length |
Product Parameter:
|
Module Type |
JKM390M-72H JKM390M-72H-V |
JKM395M-72H JKM395M-72H-V |

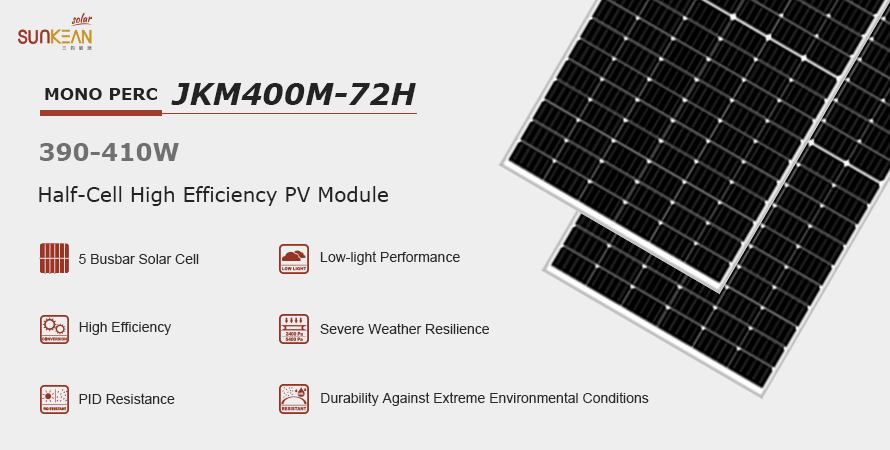

JKM400M-72H JKM400M-72H-V |
JKM405M-72H JKM405M-72H-V |
JKM410M-72H JKM410M-72H-V |
|||||
|
|
STC |
NOCT |
STC |
NOCT |
STC |
NOCT |
STC |
NOCT |
STC |
NOCT |
|
Maximum Power (Pmax) |
390Wp |
294Wp |
395Wp |
298Wp |
400Wp |
302Wp |
405Wp |
306Wp |
410Wp |
310Wp |
|
Maximum Power Voltage (Vmp) |
41.1V |
39.1V |
41.4V |
39.3V |
41.7V |
39.6V |
42.0V |
39.8V |
42.3V |
40.0V |
|
Maximum Power Current (Imp) |
9.49A |
7.54A |
9.55A |
7.60A |
9.60A |
7.66A |
9.65A |
7.72A |
9.69A |
7.76A |
|
Open-circuit Voltage (Voc) |
49.3V |
48.0V |
49.5V |
48.2V |
49.8V |
48.5V |
50.1V |
48.7V |
50.4V |
48.9V |
|
Short-circuit Current (Isc) |
10.12A |
8.02A |
10.23A |
8.09A |
10.36A |
8.16A |
10.48A |
8.22A |
10.60A |
8.26A |
|
Module Efficiency STC (%) |
19.38% |
19.63% |
19.88% |
20.13% |
20.38% |
|||||
|
Operating Temperature (°C) |
-40°C~+85°C |
|||||||||
|
Maximum System Voltage |
1000/1500VDC (IEC) |
|||||||||
|
Maximum Series Fuse Rating |
20A |
|||||||||
|
Power Tolerance |
0~+3% |
|||||||||
|
Temperature Coefficients of Pmax |
-0.35%/°C |
|||||||||
|
Temperature Coefficients of Voc |
-0.29%/°C |
|||||||||
|
Temperature Coefficients of Isc |
0.048%/°C |
|||||||||
|
Nominal Operating Cell Temperature (NOCT) |
45±2°C |
|||||||||
Solar panel production process:
Packing & Delivery:
Application Scenario:
Company Profile:
SUNKEAN is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover Half cut solar panels,rooftop solar mounting system, home solar panel , PV connectors, half cut cells pv module, photovoltaic inverter etc solar products .SUNKEAN is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.
If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
