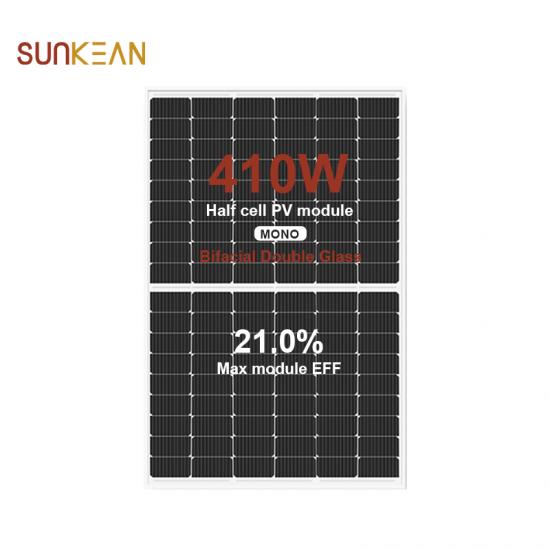

390~410W Bifacial Mono High Efficiency half cut 182mm Cell Size Solar Panels
108 cells 390～410W Mono Bifacial Half-cell High Efficiency PV Module all with A Grade for on-grid & off-grid use for residential and public rooftop & ground mounting PV Power System.
Product Information:
| Electrical Characteristics(STC*) | |||||
| Type | SKE390S8-108GA | SKE395S8-108GA | SKE400S8-108GA | SKE405S8-108GA | SKE410S8-108GA |
| Power Output (Wp) | 390 | 395 | 400 | 405 | 410 |
| Max Power Tolerance (W) | 0-5 | 0-5 | 0-5 | 0-5 | 0-5 |
| Module Efficiency | 20.0 | 20.2 | 20.5 | 20.7 | 21.0 |
| Voltage Mpp-Vmpp (V) | 30.59 | 30.76 | 30.98 | 31.23 | 31.44 |
| Current Mpp-Impp (A) | 12.75 | 12.84 | 12.91 | 12.97 | 13.04 |
| Voltage Open Circuit-Voc (V) | 36.67 | 36.91 | 37.10 | 37.33 | 37.58 |
| Short Circuit Current-Ist (A) | 13.63 | 13.71 | 13.80 | 13.87 | 13.94 |
| Operating Module Temperature | -40 °C to +85 °C | ||||
| Maximum System Voltage | 1500 V DC | ||||
| Maximum Series Fuse Rating | 25 A | ||||
STC:Irradiance 1000 W/m2, module temperature 25 °C, AM=1.5；
|
Electrical Characteristics(NMOT*) |
|||||
| Type | SKE390S8-108GA | SKE395S8-108GA | SKE400S8-108GA | SKE405S8-108GA | SKE410S8-108GA |
| Power Output (Wp) | 299.61 | 303.45 | 307.29 | 311.13 | 314.98 |
| Voltage Mpp-Vmpp (V) | 27.88 | 28.04 | 28.24 | 28.46 | 28.66 |
| Current Mpp-Impp (A) | 10.75 | 10.82 | 10.88 | 10.93 | 10.99 |
| Voltage Open Circuit-Voc (V) | 33.86 | 34.08 | 34.25 | 34.47 | 34.70 |
| Short Circuit Current-Isc (A) | 11.59 | 11.66 | 11.73 | 11.79 | 11.85 |
Electrical Characteristics With 10% Rear Side Power Gain
Power Output
429
435
440
446
451
Voltage Mpp-Vmpp (V)
30.59
30.76
30.98
31.23
31.44
Current Mpp-Impp (A)
14.03
14.12
14.20
14.27
14.34
Voltage Open Circuit-Voc (V)
36.67
36.91
37.10
37.33
37.58
Short Circuit Current-Isc (A)
14.99
15.08
15.18
15.26
15.33
| Mechanical Characteristics | |
| Solar Cell | Mono 182*91 mm |
| No. of Cells | 108 [2x (9x6)] |
| Dimensions | 1722 X 1134 X 35 mm |
| Weight | 25 kg |
| Front / Back Glass |
2.0 mm heat strengthened glass |
| Junction Box | IP68 rated (3 bypass diodes) |
| Cable |
4mm2/300mm or customized Length |
| Connector | MC4 compatible |
Product Features:
- ISO9001:2015 Quality Management system
- ISO14001:2015 Environmental Management System
- ISO45001:2018 Occupational Health and Safety Management System
- Higher output power
- Module efficiency up to 21.0%
- Lower temperature coefficient
-
Up to 30% additional power gain from back side depending on albedo
- Lower LCOE (Levelized Cost Of Energy)
- High Power output lead to lower BOS cost

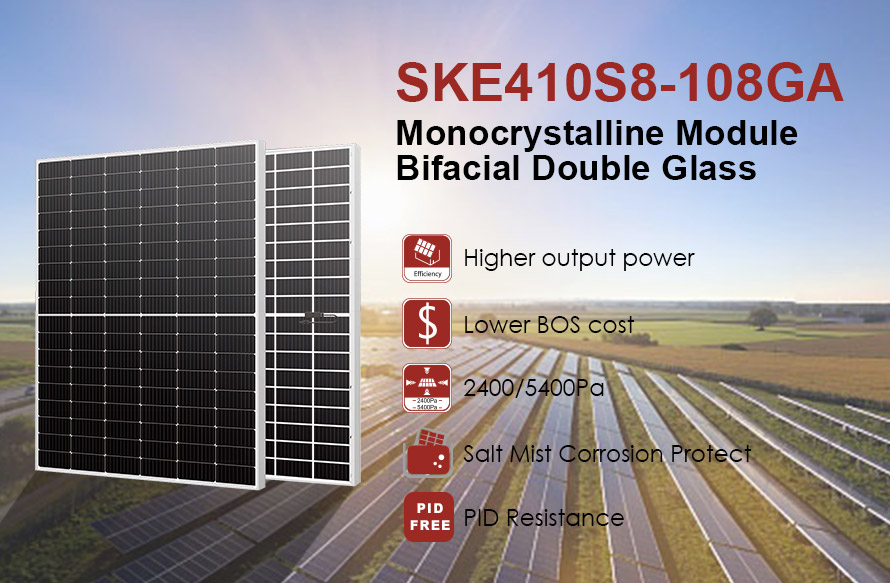

- Excellent Wind Load 2400Pa&Snow Load 5400Pa Under Certain Installation Method
- Salt Mist Corrosion Protect
- Excellent Potential Induced
- Degradation Resistance
- Ammonia Resistance
Solar panel production process:
Packing & Delivery:
Application Scenario:
Company Profile:
SUNKEAN is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover monocrystalline solar panels, house solar power system, home solar panel , mono perc half cell solar panels, 100 watt solar panel, photovoltaic inverter, half cell solar module etc solar products .SUNKEAN is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.
If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
