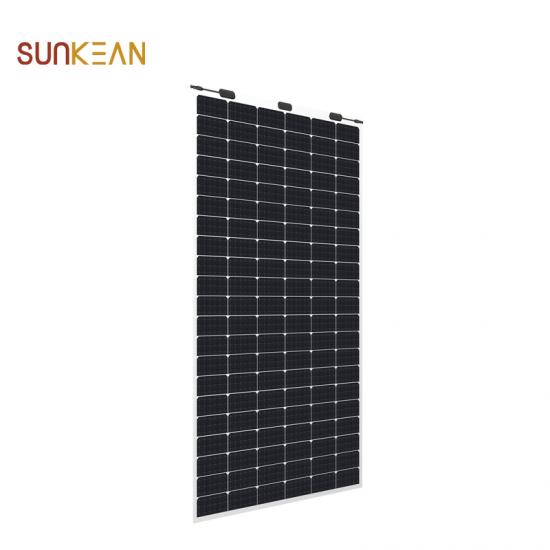

China flexible 370w 375w MWT Mono Perc pv module solar panel

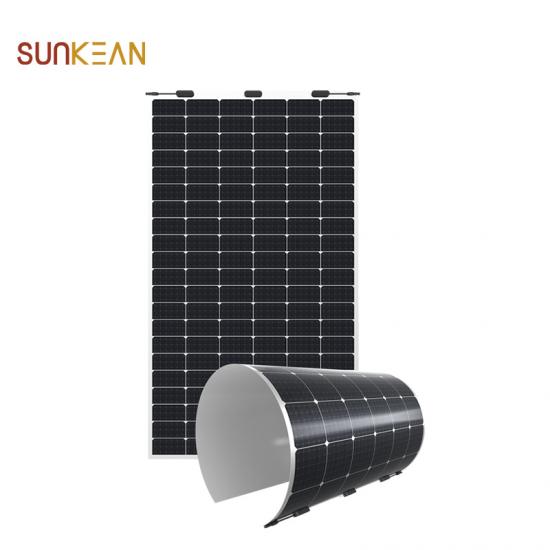

The 370~375W flexible Solar panel adopt light and thin design. Ultra-thin silicon wafers with advanced organic polymer encapsulation materials, minimum bending radius reach 0.30zm, fit all kinds of curved surface perfectly.
Product Characteristics:
| Mechanical Characteristics | |
|
Installation Module Dimension (L×W×H) |
1840mmx1040mmx2.5mm |
| Weight | 5.7kg |
|
Back material |
Back Sheet(white) |
|
Cell (quantity / material / type / dimensions) |
126(21x6) / Mono / Half-cell |
|
Encapsulant |
POE |
| Frame | None |
|
Junction box(protection degree) |
IP68 |
| Cable(length/cross-section area) |
Customizable / 4mm2 |
| Connector | MC4 Compatible |
| Bending radius | 0.3m |
Product Parameter:
| Type | SKE370QHES | SKE375QHES |
|
Electrical Characteristics (STC*) : |
||
| Max-Power(Pm) | 370 | 375 |
| Power Tolerance | 0 ~ +5 | 0 ~ +5 |
| Max-Power Voltage(Vm) | 35.1 | 35.3 |
| Max-Power Current(Im) | 10.54 | 10.62 |
| Open-Circuit Voltage(Voc) | 42.6 | 42.8 |
| Short-Circuit Current(Isc) | 11.16 | 11.23 |
| Effective Module Efficiency(ηm) | 21.0 | 21.2 |
|
Electrical Characteristics (NMOT*) : |
||
| Max-Power(Pm) | 278 | 282 |
| Max-Power Voltage(Vm) | 33.0 | 33.2 |
| Max-Power Current(Im) | 8.42 | 8.49 |
| Open-Circuit Voltage (V) | 40.1 | 40.3 |
| Short-Circuit Current (Isc) | 8.98 | 9.05 |
| Max System Voltage (V DC) | DC1500V(IEC) | |
|
Operating Temperature(°C) |
-40°C ~ +85°C | |
|
Max Series Fuse Rating |
18A | |
*STC: AM=1.5, Irradiation 1000W/m2, Module Temperature 25℃ Power Tolerance ±3%
*NMOT: Irradiation 800W/m2, Ambient temperature 20℃, Wind Speed 1m/s
Product Features:
-
Light，Thin design
5.7kg weight, 2.5mm thickness, match various requirements for low-load projects
-
Ultra Flexible
Ultra-thin silicon wafers with advanced organic polymer encapsulation materials, minimum bending radius reach 0.30zm，?t all kinds of curved surface perfectly
-
High Efficiency And Reliability
Busbar-free design increases cell conversion e?ciency，more power output can be achieved at low irradiance conditions
-
Customizable
Customized design for di?erent scenarios
-
Convenient Installation
Easy installation and convenient transportation with lower cost
-
Lead-free
Eco-friendly PV design achieves lead-free MWT module without soldering materials
