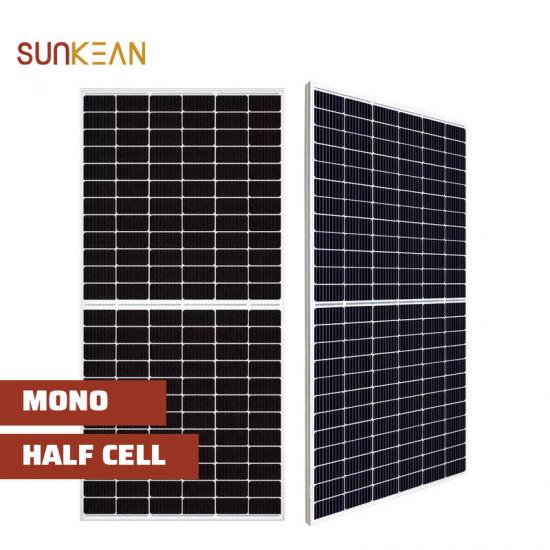

450W Hiku commercial Mono PERC Module 144 Half Cell Solar Panel
The Hiku 450W mono perc half cell pv module has higher power and more reliability, and is suitable for household and public housing and large-scale power stations, etc.
Product Characteristics:
| Mechanical Characteristics | |
|
Cell arrangement |
144 [2 x (12 x 6)] |
| Dimensions |
2108 x 1048 x 35 mm (83.0 x 41.3 x 1.38 in) |
|
Weight |
24.3kg (53.6 lbs) |
|

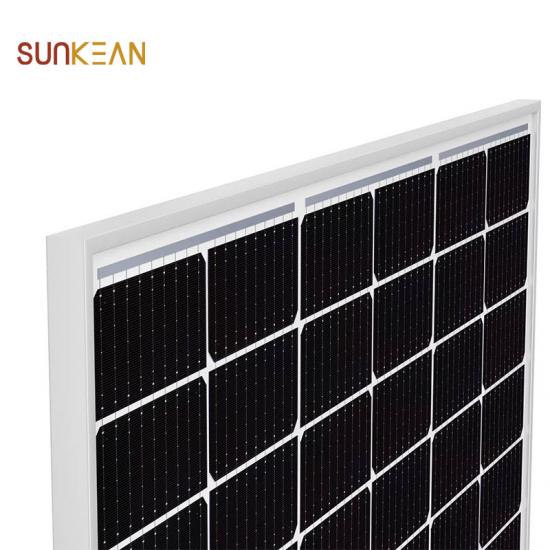

Front cover |
3.2 mm tempered glass with anti-reflective coating |
|
Frame |
Anodized aluminium alloy |
| J-Box |
IP68, 3 bypass diodes |
|
Cable |
4 mm2 (IEC), 12 AWG (UL) |
|
Cable Length (Including Connector) |
500 mm (19.7 in) (+) / 350 mm (13.8 in) (-) or customized length* |
| Connector |
T4 series or MC4-EVO2 |
| Per Pallet | 30 pieces |
| Per Container(40' HQ) |
660 pieces |
Product Parameter:
|
CS3W |
435MS | 440MS |
445MS |
450MS |
455MS |
460MS |
465MS |
|
Electrical Characteristics (STC*) : |
|||||||
|
Nominal Max. Power (Pmax) |
435W | 440W | 445W | 450W | 455W | 460W | 465W |
|
Opt. Operating Voltage (Vmp) |
40.5V | 40.7V | 40.9V | 41.1V | 41.3V | 41.5V | 41.7V |
|
Opt. Operating Current (Imp) |
10.75A | 10.82A | 10.89A | 10.96A |
11.02A |
11.09A | 11.16A |
|
Open Circuit Voltage (Voc) |
48.5V | 48.7V | 48.9V | 49.1V | 49.3V | 49.5V | 49.7V |
|
Short Circuit Current (Isc) |
11.42A | 11.48A | 11.54A | 11.60A | 11.66A | 11.72A | 11.78A |
|
Module Efficiency |
19.7% | 19.9% | 20.1% | 20.4% | 20.6% | 20.8% | 21.0% |
|
Operating Temperature |
-40°C ~ +85°C |
||||||
|
Max. System Voltage |
1500V (IEC/UL) or 1000V (IEC/UL) |
||||||
| Module Fire Performance |
TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730 1000V) or CLASS C (IEC 61730) |
||||||
| Max. Series Fuse Rating | 20A | ||||||
| Application Classification | Class A | ||||||
|
Power Tolerance |
0 ~ +10W | ||||||
|
Electrical Characteristics (NMOT*) : |
|||||||
|
Nominal Max. Power (Pmax) |
326W | 330W | 334W | 338W | 341W | 345W | 349W |
|
Opt. Operating Voltage (Vmp) |
38.0V | 38.2V | 38.3V | 38.5V | 38.7V | 38.9V | 39.1V |
|
Opt. Operating Current (Imp) |
8.59A | 8.65A | 8.71A | 8.76A | 8.82A | 8.87A |
8.92A |
| Open-Circuit Voltage (Voc) | 45.8V | 46.0V | 46.2V | 46.4V | 46.6V |
46.8V |
47.0V |
| Short-Circuit Current (Isc) | 9.21A | 9.26A | 9.31A | 9.35A | 9.40A |
9.45A |
9.50A |
* Under Standard Test Conditions (STC) of irradiance of 1000 W/m2, spectrum AM 1.5 and cell temperature of 25°C.
* Under Nominal Module Operating Temperature (NMOT), irradiance of 800 W/m2, spectrum AM 1.5, ambient temperature 20°C, wind speed 1 m/s.
Product Features:
More Power:
- 26 % more power than conventional modules
- Up to 4.5 % lower LCOE
- Up to 2.7 % lower system cost
- Low NMOT: 41 ± 3 °C
- Low temperature coefficient (Pmax): -0.34 % / °C
- Better shading tolerance
- Lower internal current, lower hot spot temperature
- Minimizes micro-crack impacts
- Heavy snow load up to 5400 Pa, wind load up to 3600 Pa
