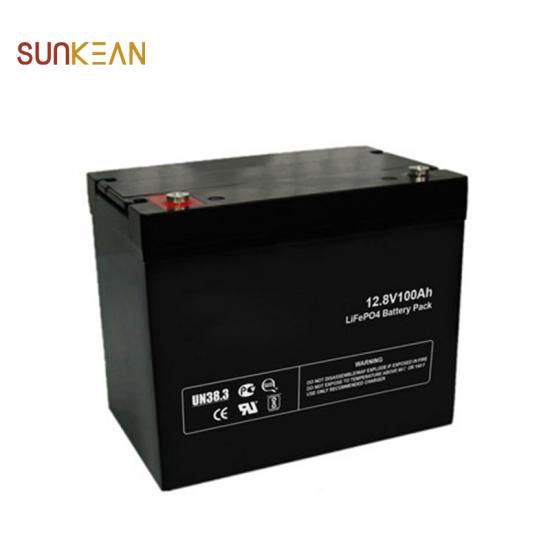

12.8V 100Ah Lithium iron phosphate battery
On the basis of retaining the shape of the lead-acid battery, lead acid replacement battery applies the high-safety lithium iron phosphate cell to ensure high energy density, wide temperature range and multi-capacity selection, which is extremely convenient to replace the lead-acid battery, high cold-start current, with battery be started at even 20% of the residual capacity.
| L mm('') | W mm(") | H mm(") | HT mm('') |
| 330(12.99) | 172(6.77) | 223(8.8) |
|
Product Information:
|
ELECTRICAL PERFORMANCE |
|
|
Nominal Voltage |
12.8 V |
|
Nominal Capacity |
100 Ah |
|
Capacity @ 8.4A |
300 min |
|
Energy |
1280 Wh |
|
Resistance |
≤50 mΩ @ 50% SOC |
|
Self Discharge |
<3% / Month |
|
Cells |
Square Cell 3.2V100Ah |
|
CHARGE PERFORMANCE |
|
|
Recommended Charge Current |
20 A |
|
Maximum Charge Current |
100 A |
|
Recommended Charge Voltage |
14.6 V |
|
BMS Charge Cut-Off Voltage |
<15.2 V (0.5 ~ 1.5 s) |
|
Reconnect Voltage |
>14.4 V |
|
Balancing Voltage |
<14 V |
|
Maximum Batteries in Series |
4 |
|
DISCHARGE PERFORMANCE |
|
|
Continuous Discharge Current |
50 A |
|
Max Discharge Current |
100 A |
|
BMS Discharge Cut-Off Current |
300 A(5 ~15 ms) |
|
Recommended Low Voltage Disconnect |
10 V |
|
BMS Discharge Cut-Off Voltage |
>8.4 V (50 ~ 150 ms) |
|
Reconnect Voltage |
>10 V |
|
Short Circuit Protection |
200 ~ 600 μs |
|
MECHANICAL PERFORMANCE |
|
|
Dimension (L x W x H) |
330 x 172 x 223 mm 12.99 x 6.77 x 8.8” |
|
Approx. Weight |
10.1 kg |
|
Terminal Type |
M8 |
|
Terminal Torque |
80 ~ 100 in-lbs (9 ~ 11 N-m) |
|
Case Material |
ABS |
|
Enclosure Protection |
IP65 |
|
TEMPERATURE PERFORMANCE |
|
|
Discharge Temperature |
-4 ~ 140 oF (-20 ~ 60 oC) |
|
Charge Temperature |
32 ~ 113 oF (0 ~ 45 oC) |
|
Storage Temperature |
23 ~ 95 oF (-5 ~ 35 oC) |
|
BMS High Temperature Cut-Off |
149 oF (65 oC) |
|
Reconnect Temperature |
118 oF (48 oC) |
|
COMPLIANCE |
|
|
Certifications |
CE UN38.3 UL1642 & IEC62133
|
|
Shipping Classification |
UN 3480, CLASS 9 |
Product Features：
------High cycle life
>4000 cycles @80% DoD for effectively lower total cost of ownership.
------Longer service life
Low maintenance batteries with stable chemistry. Easily monitor state of charge (SoC) of smart models.
------Built in circuit protection
Battery Management Systems (BMS) are incorporated against abuse.
------Better storage
Up to 6 months thanks to its extremely low self discharge (LSD) rate and no risk of sulphation.
------Quickly recharge
Save time and increase productivity with less down time thanks to superior charge/discharge efficiency.
------Extreme heat tolerance
Suitable for use in a wider range of applications where ambient temperature is unusually high: up to +60°C.
------Lightweight
Lithium batteries provide more Wh/Kg while also being up to 1/3 the weight of its SLA equivalent.
Applications:
Lithium Iron Phosphate can be used in most applications that use Lead Acid, GEL or AGM type batteries.
Suitable applications include:Caravan，Marine，Golf Car，Buggies，Solar Storage，Remote Monitoring，Switching applications and more.
