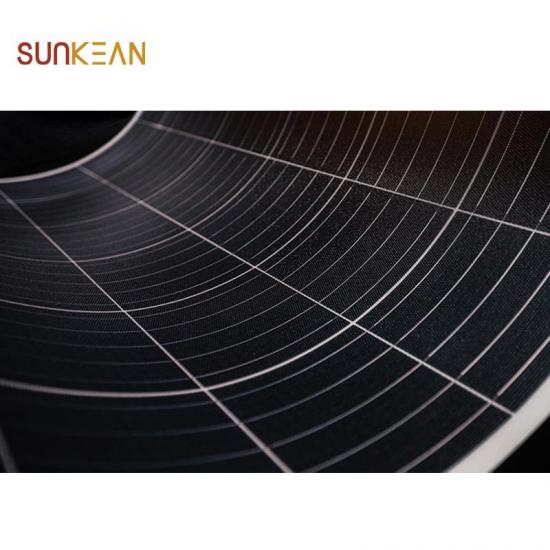

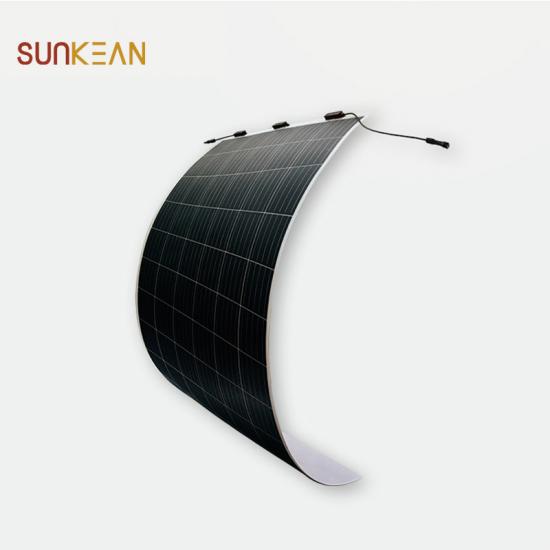

Leading technology off grid waterproof 375M light weight and flexible solar panel
375W is frameless and has the most flexibility. It is suited to many innovative cross-market applications.
Product Characteristics:
Electrical Characteristics:
|
Module Type |
SMF375M-6X12UW | |
| Testing Condition |
STC |
NMOT |
|
Maximum Power (Pmax) |
375 | 282 |
|
Maximum Power Voltage (Vmp) |
40.2 |
37.0 |
|
Maximum Power Current (Imp) |
9.33 |
7.63 |
|
Open Circuit Voltage(Voc) |
48.6 | 45.3 |
|
Short Circuit Current(Isc) |
9.86 | 8.07 |
| Module Efficiency (%) | 18.7% | |
|
Operating Temperature |
-40°C to 85°C | |
|
Maximum System Voltage |
1000V DC (IEC) | |
|
Maximum Series Fuse Rating |
20A |
|
|
Application Class |
Class A |
|
|
Power Tolerance |
0/+5 W |
|
*STC: Irradiance 1000W/m2 , Cell temperature 25℃, AM=1.5.
Tolerances of Pmax , Voc and Isc are within ±5%
*NMOT: Irradiance 800W/m2 , Ambient temperature 20℃,AM=1.5, Wind speed 1 m/s.
Mechanical Characteristics:
Monocrystalline silicon (158.75mm)
No. of Cells
Module Dimensions
2002×1000×2 mm
Backsheet
Frameless
Output Cables
Photovoltaic technology cable 4.0 mm2 , (+)150 / (-)450 mm
Connector
MC4 compatible
Solar Cell
72(6x12)
Weight
5.8 kg
White
Frame
J-box
IP 68 rated
flexible solar panel Features:
-----Ultra-light: Glass free module weighs 5.8kg, 70% lighter than conventional glass modules.
-----Fast-lnstallation:Through"Quick- Bonding" installation requires no penetration, reduces time on roof by 40% and eliminates the use of mounting hardware.
-----Aesthetic:Seamless integration with underlying installation surface.
-----Durable: eArc is the first glassless module to pass the same durability tests as conventional glass modules, including IEC 61215:2016, lEC61730:2016 and UL1703 (USA). eArc has also passed PID, salt mist and ammonia corrosion tests.
