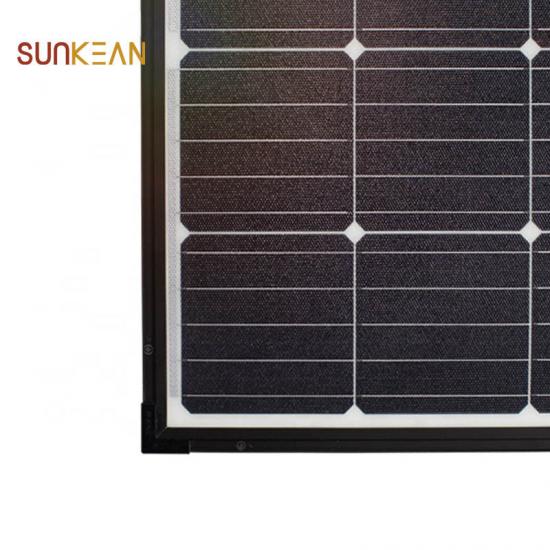

High quality 375W Perc cell flexible solar panel
375W flexible solar panel is equipped with 5.6mm ultra-thin aluminum frame,can be installed via quick-bonding or mechanical fixing, making it suitable for a variety of low load and impenetrable roofs.
Product Characteristics:
Electrical Characteristics:
|
Module Type |
SMD375M-6X12UW | |
| Testing Condition |
STC |
NMOT |
|
Maximum Power (Pmax) |
375 | 282 |
|
Maximum Power Voltage (Vmp) |
40.2 |
37.0 |
|
Maximum Power Current (Imp) |
9.33 |
7.63 |
|
Open Circuit Voltage(Voc) |
48.6 | 45.3 |
|
Short Circuit Current(Isc) |
9.86 | 8.07 |
| Module Efficiency (%) | 17.9% | |
|
Operating Temperature |
-40°C to 85°C | |
|
Maximum System Voltage |
1000V DC (IEC) | |
|
Maximum Series Fuse Rating |
20A |
|
|
Application Class |
Class A |
|
|
Power Tolerance |
0/+5 W |
|
*STC: Irradiance 1000W/m2 , Cell temperature 25℃, AM=1.5.
Tolerances of Pmax , Voc and Isc are within ±5%
*NMOT: Irradiance 800W/m2 , Ambient temperature 20℃,AM=1.5, Wind speed 1 m/s.
Mechanical Characteristics:
Monocrystalline silicon (158.75mm)
No. of Cells
Module Dimensions
2031×1029×5.6 mm
Backsheet
Black Anodized Aluminium Alloy
Output Cables
Photovoltaic technology cable 4.0 mm2 , (+)150 / (-)450 mm
Connector
MC4 compatible
Solar Cell
72(6x12)
Weight
6.9 kg
White
Frame
J-box
IP 68 rated
375W renogy flexible solar panel Features:
-----Ultra-light: Glass free module weighs 6.0kg, 70% lighter than conventional glass modules.
-----Fast-lnstallation:Through"Quick- Bonding" installation requires no penetration, reduces time on roof by 40% and eliminates the use of mounting hardware.
-----Aesthetic:Seamless integration with underlying installation surface.
-----Durable: eArc is the first glassless module to pass the same durability tests as conventional glass modules, including IEC 61215:2016, lEC61730:2016 and UL1703 (USA). eArc has also passed PID, salt mist and ammonia corrosion tests.
Solar panel production process:
Packing & Delivery:
Application Scenario:
Company Profile:
SUNKEAN is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover Mono perc solar panel,house solar power system, home solar panel , PV connectors, 100 watt solar panel, photovoltaic inverter etc solar products.SUNKEAN is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.
If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
