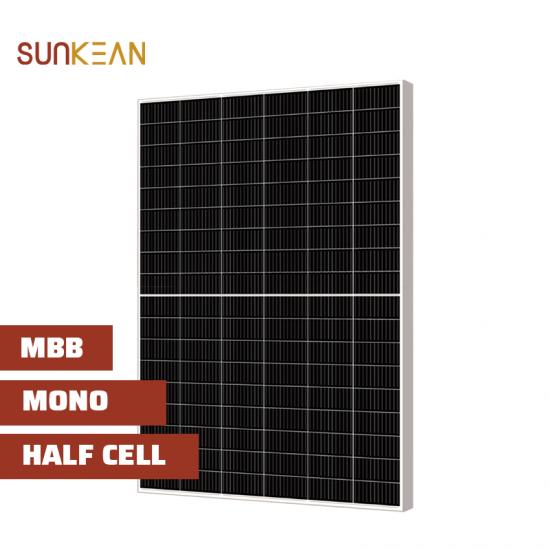

210 mm cell size 545W Half cut 108 cells mono solar panel
210mm 545W module conversion efficiency can reach 21.3%, higher output power, lower temperature coefficient, effectively reduce the system BOS cost and improve the project yield.
Product Information:
| Type |
SKE520S9-108 |
SKE525S9-108 | SKE530S9-108 | SKE535S9-108 | SKE540S9-108 | SKE545S9-108 |
|
Electrical Characteristics(STC*) |
||||||
| Power Output (Wp) | 520 | 525 | 530 | 535 | 540 | 545 |
| Max Power Tolerance (W) |
0-5 |
0-5 | 0-5 | 0-5 | 0-5 |
0-5 |
| Module Efficiency | 20.3 | 20.5 | 20.7 | 20.9 | 21.1 | 21.3 |
| Voltage Mpp-Vmpp (V) | 30.36 | 30.54 | 30.72 | 30.92 | 31.11 | 31.29 |
| Current Mpp-Impp (A) | 17.13 | 17.19 | 17.25 | 17.30 | 17.36 | 17.42 |
| Voltage Open Circuit-Voc (V) | 36.86 | 37.08 | 37.27 | 37.45 | 37.64 | 37.84 |
| Short Circuit Current-Ist (A) | 18.54 | 18.59 | 18.66 | 18.72 | 18.78 | 18.82 |
|
Electrical Characteristics(NMOT*) |
||||||
|
Power Output (Wp) |
399.48 | 403.32 | 407.16 | 411.01 | 414.85 | 418.69 |
|
Voltage Mpp-Vmpp (V) |
27.67 | 27.84 | 28.01 | 28.19 | 28.35 | 28.52 |
|
Current Mpp-Impp (A) |
14.44 | 14.49 | 14.54 | 14.58 | 14.63 | 14.68 |
|
Voltage Open Circuit-Voc (V) |
34.03 | 34.24 | 34.41 | 34.58 | 34.75 | 34.94 |
|
Short Circuit Current-Ist (A) |
15.76 | 15.81 | 15.86 | 15.92 | 15.97 | 16.00 |
| Operating Module Temperature | -40 ~ +85°C | |||||
| Maximum System Voltage |
1500 V DC |
|||||
| Maximum Series Fuse Rating | 30 A | |||||
STC:Irradiance 1000 W/m2, module temperature 25 °C, AM=1.5；
NMOT： Irradiance 800 W/m2, ambient temperature 20 °C, AM=1.5, wind speed 1 m/s.
| Mechanical Characteristics | |
| Solar Cell | Mono 210*105 mm |
| No. of Cells | 108 [2x (9x6)] |
| Dimensions | 1962 X 1303 X 35 mm |
| Weight | 28 kg |
| Glass | High transmission glass 3.2mm |
| Junction Box | IP68 rated (3 bypass diodes) |
| Cable |
4mm2/300mm or customized |
| Connector | MC4 compatible |
Product Features:
- ISO9001:2015 Quality Management system
- ISO14001:2015 Environmental Management System
- ISO45001:2018 Occupational Health and Safety Management System
- Higher output power
- Module efficiency up to 21.3%
- Lower temperature coefficient
- Lower LCOE (Levelized Cost Of Energy)
- High Power output lead to lower BOS cost
- Excellent Wind Load 2400Pa&Snow Load 5400Pa Under Certain Installation Method
- Salt Mist Corrosion Protect
-
Ammonia Resistance
- Excellent Potential Induced
- Degradation Resistance
Solar panel production process:
Packing & Delivery:
Application Scenario:
Company Profile:
SUNKEAN is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover monocrystalline solar panels, house solar power system, home solar panel , mono perc half cell solar panels, 545 watt solar panel, photovoltaic inverter, half cell solar module etc solar products .SUNKEAN is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.
If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
