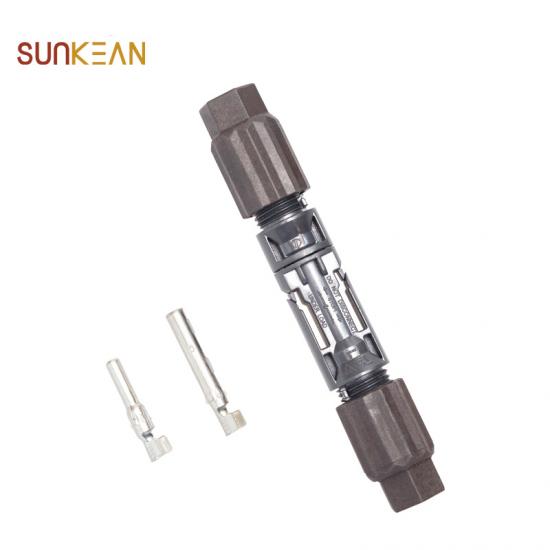

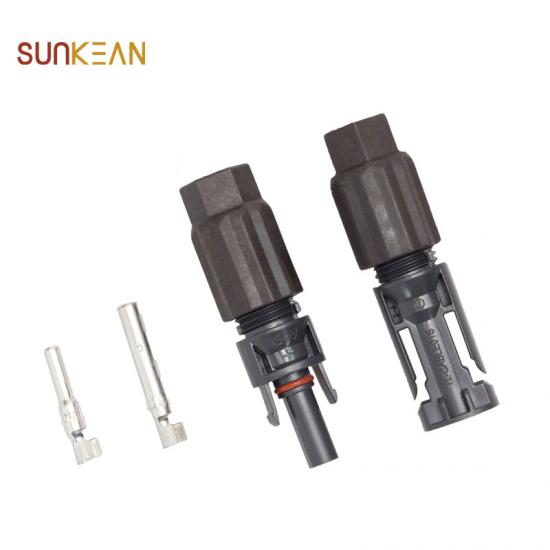

Solar Panel PV Connector DC1500V
IP68 waterproof solar photovoltaic DC connector male and female joints are approved by TUV, which can accommodate photovoltaic cables with different insulation diameters.
Product Description:
|
Model No.: |
SKE-01S-FR |
|
Standard: |
IEC 62852:2014 & UL6703 |
|
Rated Voltage： |
TüV /UL 1500V DC |
|
Rated Current： |
TüV 30A /UL 20A |
|
Insulation Material： |
PA/PPE |
|
Contact Resistance： |
≤0.5m? |
|
Ambient Temp： |
-40°C-+90°C |
|
IP Level： |
IP68 |
|
Safety Class： |
Class A |
|
Application： |
Solar cable 4mm2/12 AWG, 6mm2/10AWG |
Product Features:
------Acid & UV resistance surface;
------Integrated with heat & cold resistance;
------Service lift > 25 years;
------TüV & UL double approval;
------Applicable for harsh environment outside;
------Use male & female self-block, easy to lock & unlock
Packing & Delivery:
Application Scenario:
Global Exhibitions:
Company Profile:
SUNKEAN is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover PV modules, solar cables, solar extension cables , PV connectors, home solar kits, inverters etc solar products .SUNKEAN is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.
FAQ:
Q: How could i get the sample ?
A: We have different kinds of XLPE insulation pv solar cable,photovoltaic cable,xlpe solar cable in stock, you can require for samples to check our quality.Samples are free provided, you only need to pay the courier fees.
Q: How long is the delivery time?
A1)For Sample: 1-3 Days;
A2)For small Orders: 3-10 Days;
A3)For mass Orders:15-20 Days;
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment or against B/L.
If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
