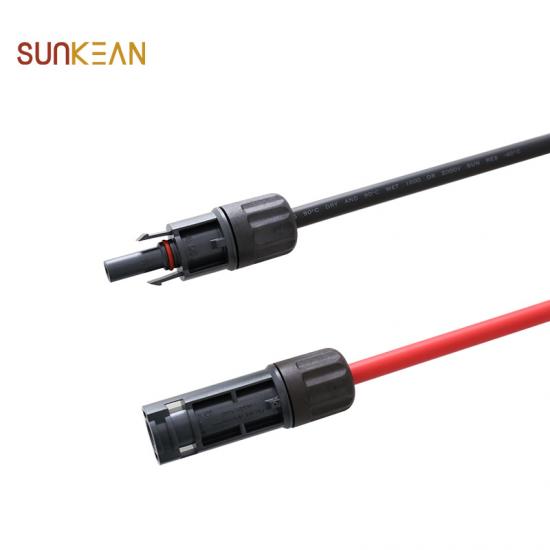

10AWG UL Solar Extension wire with DC Waterproof Connector Male Female
This UL 4703 extension cable offers a wide range of lengths, as well as two different gauge sizes to choose from.
Product Characteristics:
|
CONNECTOR |
No. | SKE-Q4.10 |
|
Rate Voltage |
IEC 1500V &UL 1500V |
|
|
Rated Current |
35A, 41A, 46A |
|
|
Overvoltage category/Pollution degree |
II |
|
|
Flammability Class |
5VA | |
|
Ambient temperature range |
-40°C…+85°C(IEC) |
|
|
Contact Resistance |
≤5mΩ |
|
|
Degree of Protection |
IP68 |

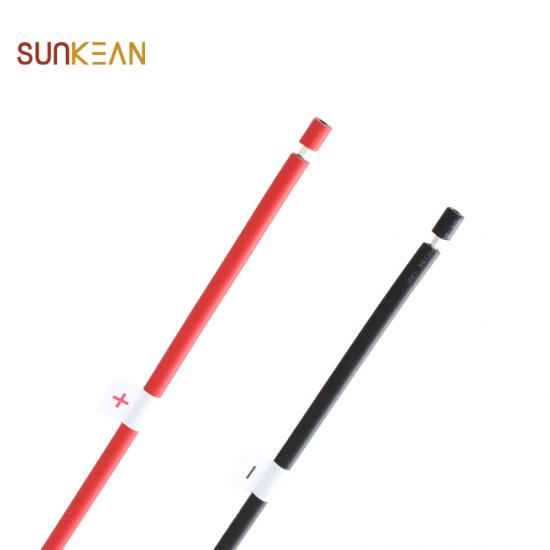

| Solar Cable | Cross Section(AWG) | 10AWG |
| Construction(No./mm) | 75/0.3 | |
| Cable O.D.(mm) | 6.7mm | |
| Voltage Rating | 1000 or 2000V | |
| Test Voltage |
1000 or 2000V, 6KV/min |
|
| Temperature Rating |
-40°C to +105°C |
|
| Conductor Material |
Stranded tinned copper |
|
| Testing Standard |
Test under fire conditions : UL 1581 VW-1 Sunlight resistance: UL2556 Cold bend test: UL854 |
Product Processing:
Product Features:
------Connector is set up at SINGLE end of cable;
------Appointed length is acceptable;
------No need for terminal processing;
------Tinned copper contact is pre-assembled , no need for crush tool;
------If O.D. of two ends are different can also be connected;
------Application : used in solar system , module, junction box and so on.
Application Scenario:
Global Exhibitions:
Company Profile:
SUNKEAN is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover PV modules,PV1-F solar cable, solar connectors for PV system , PV connectors, pvc coated wire mesh fence, inverters etc solar products .SUNKEAN is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.
FAQ:
Q: How could i get the sample ?
A: We have different kinds of XLPE insulation pv solar cable, photovoltaic cable, xlpe solar cable in stock, you can require for samples to check our quality.Samples are free provided, you only need to pay the courier fees.
Q: How long is the delivery time?
A1)For Sample: 1-3 Days;
A2)For small Orders: 3-10 Days;
A3)For mass Orders:15-20 Days;
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment or against B/L.
If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
