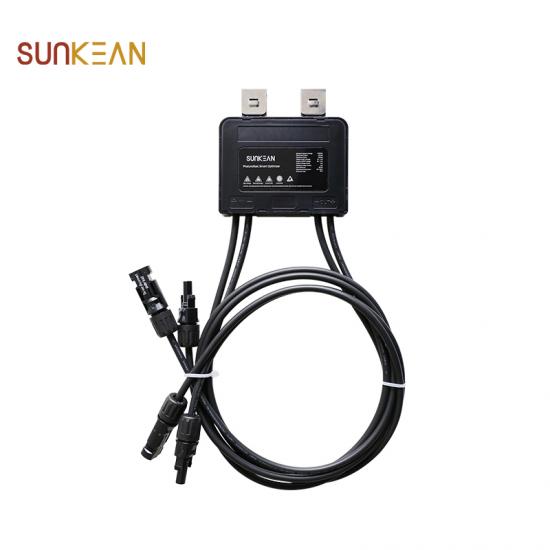

PV photovoltaic Module MPPT External Optimizer for Solar System
SUNKEAN’S PV module external optimizers can be attached to the back of each solar panel in the array. The optimizes the performance of each panel in the solar system, regardless of the orientation of the sun, shade, or even damage to one or more panels.
Product Information:
Input Parameter
Maximum Input Power
Operating Voltage Range
MPPT Voltage Range
Maximum Input Current
15 A | Scalable
Over-current Protection
25 A
Over-temperature Protection
150 ℃
600W
7~70V
7~70V
Output Parameter
Maximum Output Current
42 V | Adjustable
Total Maximum System Voltage
72 Type Module String@1500 V
36 Modules
72 Type Module String@1100 V
26 Modules
72 Type Module String@1000 V
24 Modules
15 A
Output Voltage Limiting Threshold
1500 V
Conversion Efficiency
|
Peak Conversion Efficiency |
99.5% |
|
Power Consumption@5 A |
0.9 W |
| Power Consumption@8 A | 1.4 W |
|
Power Consumption@12 A |
2.9 W |
|
Power Consumption@15 A |
4.5 W |
|
Power Consumption@20 A |
7.2 W |
Specifications
|
Dimensions（L×W×H) |
105*105*20 m |
| Weight | 500g |
| Cable |
4.0 mm2 Input Wire 100cm*2PCS Output Wire 70cm*2PCS |
| Connector |
MC4(Compatible) |
|
Operating Temperature Range |
-40℃ ~ +65 ℃ |
|
Protection Rating |
IP68 |
Product Application:
? Applies to all types of modules, Optimization +Voltage Limiting +Anti-Hotspot;
? Based on power optimization chip, eliminate panel or cell level mismatch;
? Solve the current mismatch issues caused by shading gradients, aging variations, temperature gradients, soiling gradients, etc;
? Optimize power generation, lower LCOE, improve solar system reliability, extend the service life of module.
Product Benefits:
? 3% ~ 25% optimization, retrieve power generation loss
? 33% Long string installation available due to Voltage Limiting
? Δ < 10℃ Anti-Hotspot, more safe and durable
