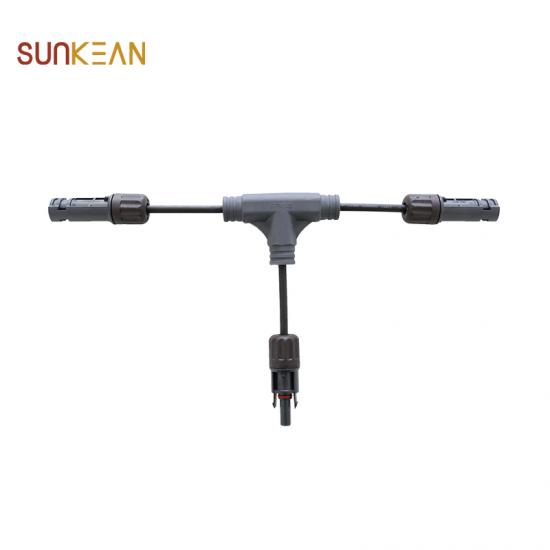

IP68 Parallel Connection T Type PV Solar Power wire harness match H1Z2Z2-K solar cable
SUNKEAN Y Branch harness have IP68 water-proof rating and can be used in a wide operating temperature range from -40 °C to +90 °C. Lower contact resistance and higher current transfer capability ensure high product efficiency.
T Branch Technical Data:
| Name |
H1Z2Z2-K T branch solar harness |
|
Rated Voltage |
DC 1500V |
| Rated Current |
30A(4mm2,12AWG/6mm2, 10AWG）50A(10mm2, 8AWG) |
| Ambient Temperature |
-40℃ up to +60℃ |
|
Contact Resistance |
≤0.05mΩ |
|
Pollution Degree |
Class II |
|
Fire Resistance |
UL94-V0 |
|
Rated Impulse Voltage |
16KV |
Description of T type Solar branch Cables:
- Dual wall insulation, Electron beam cross-linked
- Excellent resistance to UV, oil, greases, oxygen and ozone
- Excellent resistance to abrasion Halogen free, flame retardant, low toxicity, ROHS
- Excellent flexibility and stripping performance
- High Voltage and Current carrying capacity
- TUV, CE, ISO approved
*Can be customized according to customer requirements.
Description of Solar Waterproof Connector:
- IP68 Waterproof and UV resistant, suitable for outdoor terrible environments
- Safe ,Simple and Quick on-site processing
- Mating safety provided by keyed housings
- Multiple plugging and unplugging cycles
- Compatible with different size of PV cables commonly
- High current carrying capacity
*Can be customized according to customer requirements.
Packing & Delivery:
Global Exhibitions:
Company Profile:
SUNKEAN is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover solar cable connectors, solar cables, solar extension cables , solar energy off grid, lithium ion battery for solar storage, 3 phase off grid solar inverter etc solar products .SUNKEAN is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.
FAQ:
Q: How could it get the sample ?
A: We have Solar PV wiring harnesses in stock, you can require for samples to check our quality.Samples are free provided, you only need to pay the courier fees.
Q: How long is the delivery time?
A1)For Sample: 1-3 Days;
A2)For small Orders: 3-10 Days;
A3)For mass Orders:15-20 Days;
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment or against B/L.
If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
