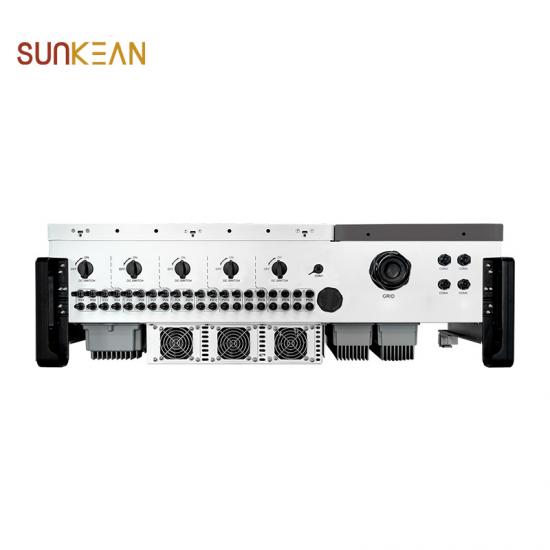

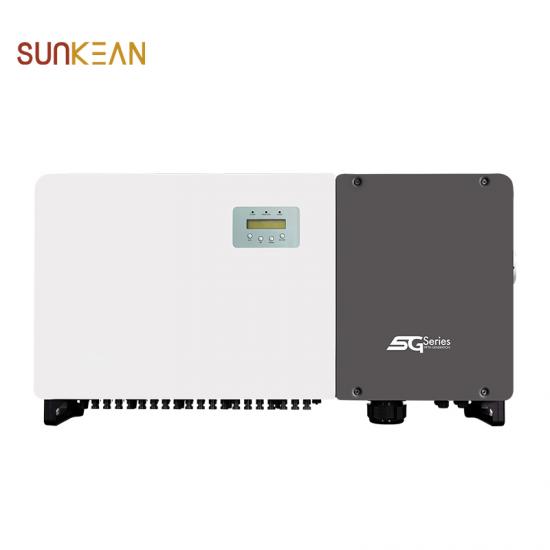

110KW Three Phase On Grid Solar Inverter
110kW 5G three phase series string inverter adopt 9/10 MPPT design to provide a more flexible configuration scheme with a smaller environmental impact rateand higher generation efficiency. Max. 13A per string, 150% DC overloading capability，Remote & local intelligent IV scan function.
Product Information:
| Datasheet | |
|
Model Name |
SKE-110K-5G |
|
Input DC |
|
|
Max. input voltage |
1100V |
|
Rated voltage |
600V |
|
Start-up voltage |
195V |
|
MPPT voltage range |
180-1000V |
|
Max. input current |
10*26A |
|
Max. short circuit current |
10*40A |
|
MPPT number/Max. Input strings number |
10/20 |
|
Output AC |
|
|
Rated output power |
110kW |
|
Max. apparent output power |
121kVA |
|
Max. output power |
121kW |
|
Rated grid voltage |
3/N/PE. 220/380V, 230/400V |
|
Rated grid frequency |
50/60HZ |
|
Rated grid output current |
167.1A |
|
Max. output current |
183.8A |
|
Power Factor |
>0.99 (0.8 leading - 0.8 lagging) |
|
THDi |
<3% |
|
Efficiency |
|
|
Max. efficiency |
98.7% |
|
EU efficiency |
98.3% |
|
Protection |
|
|
DC reverse-polarity protection |
Yes |
|
Short circuit protection |
Yes |
|
Output over current protection |
Yes |
|
Surge protection |
OC ,.ell/AC Type II (AC Type I optional) |
|
Grid monitoring |
Yes |
|
Anti-islanding protection |
Yes |
|
Strings monitoring |
Yes |
|
1/V Curve scanning |
Yes |
|
Anti-PID function |
Yes |
|
Integrated DC switch |
Yes |
|

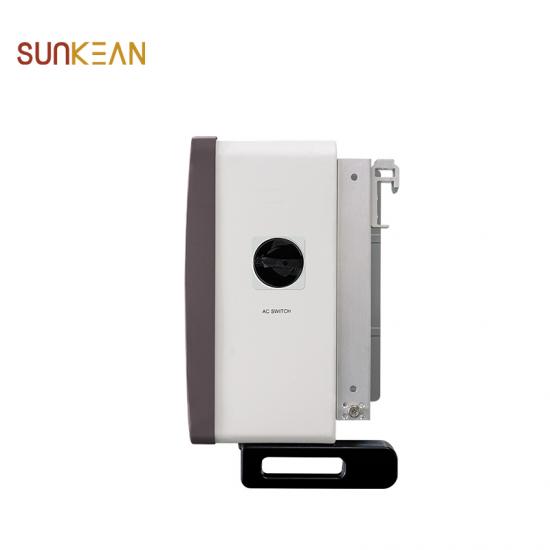

Integrated AC switch |
Optional |
|
General Data |
|
|
Dimensions (W*H*D) |
1099.5*567*344.5 mm (with AC switch) |
|
Weight |
84kg |
|
Topology |
Transformerless |
|
Self consumption |
<2W (night) |
|
Operating ambient temperature range |
-25~+60°C |
|
Relative humidity |
0-100% |
|
Ingress protection |
IP68 |
|
Cooling concept |
Intelligent redundant fan-cooling |
|
Max. operation altitude |
4000m |
|
Grid connection standard |
VDE-AR-N 4105, VDE V 0124, VDEV 0126-1-1, UTE C15-712-1, NRS 097-1-2, G98,G99,
EN 50549-1/-2, RD 1699, UNE 206006, UNE 206007-1, IEC 61727, DEWA
|
|
Safety/EMC standard |
IEC 62109-1/-2, IEC 62116, EN 61000-6-2/-4 |
|
Features |
|
|
DC connection |
MC4 connector |
|
AC connection |
OT terminal (max. 185 mm2) |
|
Display |
LCD, 2x20 Z |
|
Communication |
RS485, Optional: Wi-Fi, GPRS, PLC |
Product Features：
------Over 98.7% Max. Effciency;
------Wide voltage range and low startup voltage;
------10 MPPT design with precise MPPT algorithm;
------THDi<3%, low harmonic distortion against grid;
------Anti-resonance, supporting over 6MW parallelled in one transformer;
------Perfect commercial site monitoring solution;
------Intelligent redundant fan-cooling;
------Strings intelligent monitoring, Smart I-V Curve Diagnosis supported;
------Fuse free design to avoid fire hazard;
------Type II surge arrester for both DC and AC, type I surge arrestor optional;
------Leakage current repression technology;
------Volt-watt work mode integrated;
------DC input reverse alarm;
------Optional anti-PID function integrated;
------Integrated DC switches, AC switch optional.
Three Phase Solar Inverter production process:
Application Scenario:
