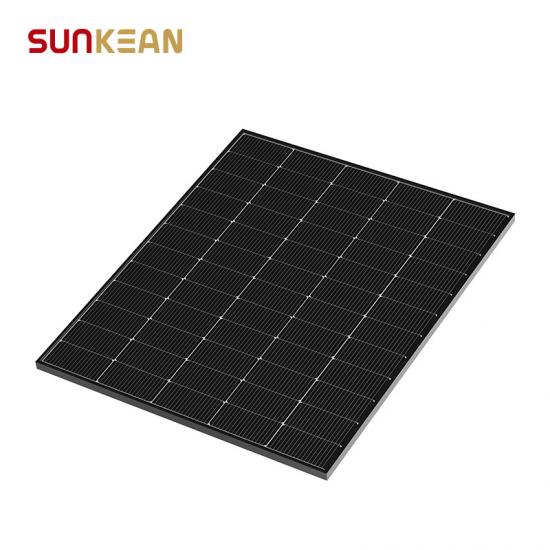

240W half-cell 60cells solar panels specially designed for roofs
The 240W pv module has high module quality ensures long-term reliability and excellent outdoor power generation performance.
Product Characteristics:
| Mechanical Characteristics | |
|
Cell arrangement |
60 (5x12) |
| Dimensions |
1152 x 954 x 30 mm |
|
Weight |
11.5kg |
|
Glass |
3.2mm coated tempered glass，Anti-reflective coating |
|
Frame |
Black anodized aluminium alloy |
| J-Box |
IP68 Rated |
|
Output Cable |
TüV 1x4mm2 |
| Packaging | 36 pcs/pallet, 576pcs/20'GP, 1296pcs per 40'HC |
Electrical Characteristics:
Maximum Power(Pmax/W)
Open Circuit Voltage (Voc/V)
Short Circuit Current (Isc/A)
Voltage at Maximum Power (Vmp/V)
Current at Maximum Power (Imp/A)
Module Efficiency(%)
Module Type
SKE240M5-60
Testing Condition
STC
NOCT
240
180
42.35
40.14
7.19
5.83
35.19
32.8
6.82
5.49
21.84
* Under Standard Test Conditions (STC) of irradiance of 1000 W/m2, spectrum AM 1.5 and cell temperature of 25°C.
* Under Nominal Module Operating Temperature (NMOT), irradiance of 800 W/m2, spectrum AM 1.5, ambient temperature 20°C, wind speed 1 m/s.
Operating Parameters:
|
Operational Temperature |
-40°C~+80°C |
|
Power Output Tolerance |
0~3% |
|
Voc and Isc Tolerance |
土3% |
|
Maximum System Voltage |
DC1500V(IEC) |
|
Maximum Series Fuse Rating |
15A |
|
Nominal Operating Cell Temperature |
45士2°C |
|
Protection Class |
Class II |
|
Fire Rating |
IEC Class C |
Mechanical Loading:
|
Front Side Maximum Static Loading |
5400Pa |
|
Rear Side Maximum Static Loading |
2400Pa |
|
Hailstone Test |
25mm Hailstone at the speed of 23m/s |
Temperature Ratings(STC):
|
Temperature Coefficient of Isc |
+0.045%/°C |
|
Temperature Coefficient of Voc |
-0.250%/°C |
|
Temperature Coefficient of Pmax |
-0.290%/°C |
Product Features:
- Specifically designed for roofs
- Lower LCOE & system cost
- Excellent outdoor power generation performance
- High module quality ensures long-term reliability
