American Standard UL Approved Solar Cable UL PV
Solar cable rated 90℃ dry, 90℃ wet, 1000 or 2000V, in conductor arrangement of ground connection and earth-free connection photovoltaic power systems.
Product description:

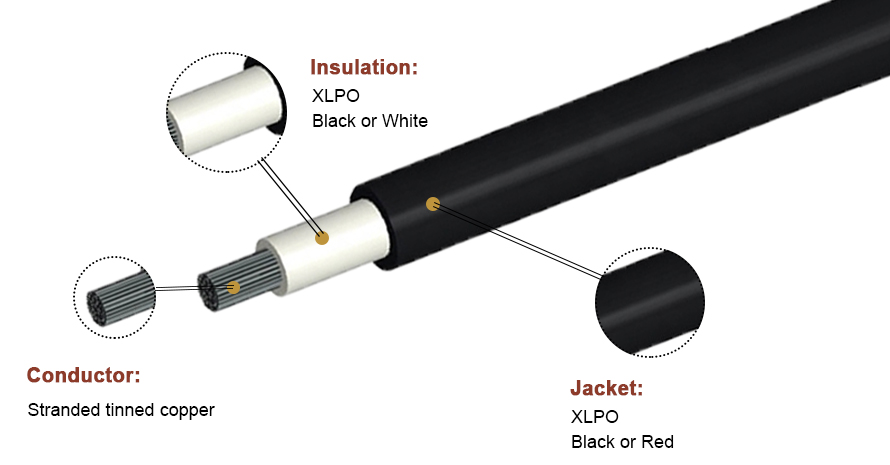

Conductor Construction
(No./mm)
600V Cable OD.
(mm)
1000V or 2000V Cable OD.
(mm)
Conductor Resistance Max
(?/km, 20°C)
AWG
14
41/0.254
5.10
5.85
8.96
12
48/0.30
5.60
6.40
5.64
10
78/0.30
6.20
7.00
3.546
8
67/0.40
7.70
8.30
2.23
6
106/0.40
9.50
10.10
1.403
4
420/0.254
11.20
11.70
0.882
2
665/0.254
13.00
13.50
0.5548
1/0
1045/0.254
16.40
16.90
0.3487
2/0
1330/0.254
17.80
18.30
0.2766
3/0
1672/0.254
19.20
19.70
0.2194
4/0
2109/0.254
20.60
21.10
0.1722
Technical Data:
|
Nominal voltage |
U=600,1000/2000VAC |
|
Voltage test on completed cable |
U=600V
8~2AWG, 3.5KV/1Min.
1~4/0AWG, 4KV/1Min. U=1000 or 2000V
18~10AWG, 6KV/1Min.
8~2AWG, 7.5KV/1Min. 1~4/0AWG, 9KV/1Min. |
|
Temperature rating |
-40℃~＋90℃ |
| Test under fire conditions |
UL1581 VW-1 |
| Relative permittivity |
UL854 |
| Stability factor |
UL854 |
| Sunlight resistance |
UL2556 |
| Cold bend test | UL854 |
Advantages:
(1)E-beam cross-linked compounds;
(2)High resistance against UV ozone and hydrolyzation;
(3)High temperature resistance, materials will not melt or flow;
(4)Flexibility under cold conditions;
(5)Long useable life expected usable life over 25 years(90℃) ;
(6)Application to all common connectors.
Packing & Delivery:
Application Scenario:
Global Exhibitions:
Company Profile:
SUNKEAN is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover PV modules, PV Wire used in solar system, solar extension cables ,UL4703 PV Wire, fence, UL4703 1000/2000V solar cable etc solar products .SUNKEAN is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.
FAQ
Q: How could i get the sample ?
A: We have different kinds of XLPE insulation pv solar cable,photovoltaic cable,xlpe solar cable in stock, you can require for samples to check our quality.Samples are free provided, you only need to pay the courier fees.
Q: How long is the delivery time?
A1)For Sample: 1-3 Days;
A2)For small Orders: 3-10 Days;
A3)For mass Orders:15-20 Days;
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment or against B/L.
If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
