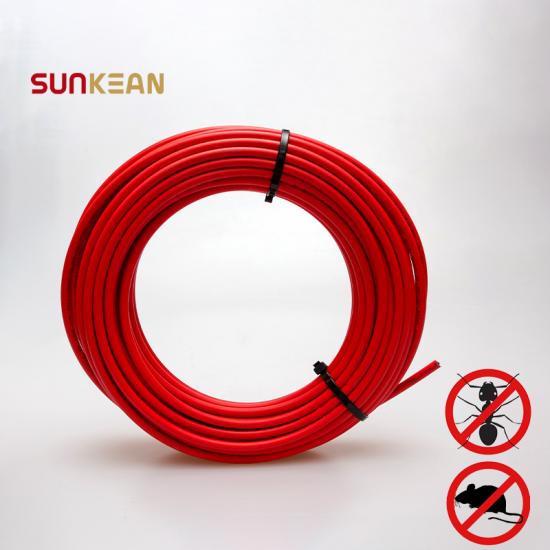

Termite Proof Mouse Proof 4mm2 TüV 2pfg 1169 PV1-F Single Core Solar Cable
The PV1-F solar cable is made of a three-layer insulation structure of irradiation cross-linked polyolefin, nylon, and irradiation cross-linked polyolefin, which is resistant to termites and rodents. In photovoltaic power generation systems, it can be used outdoors under sunlight or directly buried in the ground.
Product Information:
| Conductor | Cross-sectional Area | 4mm2 |
| Material | Stranded Tinned Copper | |
| Conductor Size (mm) |
52/(0.30±0.008) |
|
| Stranded OD. (mm) | 2.46 | |
| Inner Layer | Material | XLPO |
| Min Thickness (mm) | 0.50 | |
| OD. (mm) |
3.55±0.10 |
|
| Color | Black & Red | |
| Cover Layer | Material | Nylon |
| Min Thickness (mm) | 0.20 | |
| OD. (mm) |
4.15±0.10 |
|
| Color | Black | |
| Out Layer | Material | XLPO |
| Min Thickness (mm) | 0.50 | |
| OD. (mm) |
4.60±0.15 |
|
| Color | Black |
Advantages:
(1)Electron-beam cross-linked compounds.
(2)UV, ozone, and hydrolysis resistant.
(3) High-temperature resistance, the materials do not melt or flow.
(4)Good cold flexibility.
(5)Very long service life > 25 years at 90°C.
(6)Compatible with all popular connectors.
(7)Anti-termite / anti-rodent protection.
Packing & Delivery:
Application Scenario:
Global Exhibitions:
Company Profile:
SUNKEAN is a fast-growing solar company, as well as a turnkey solution provider in China. Products cover PV modules, house solar power systems, PV1-F Solar Cable, PV connectors, fences, photovoltaic inverters, etc solar products.SUNKEAN is committed to providing the best solutions for users, installers, investors, and all stakeholders. We always take responsibility for customers’ demands. We make our effort for innovations and breakthroughs.
FAQ
Q: How could I get the sample?
A: We have different kinds of XLPE insulation PV solar cable, photovoltaic cable, and xlpe solar cable in stock, you can require for samples to check our quality. Samples are free provided, you only need to pay the courier fees.
Q: How long is the delivery time?
A1)For Sample: 1-3 Days;
A2)For small Orders: 3-10 Days;
A3)For mass Orders:15-20 Days;
Q: What are your terms of payment?
A: Payment<= 1000 USD, 100% in advance. Payment>= 1000 USD, 30% T/T in advance, balance before shipment or against B/L.
If you are an end user, we can offer more detailed information to you. Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
