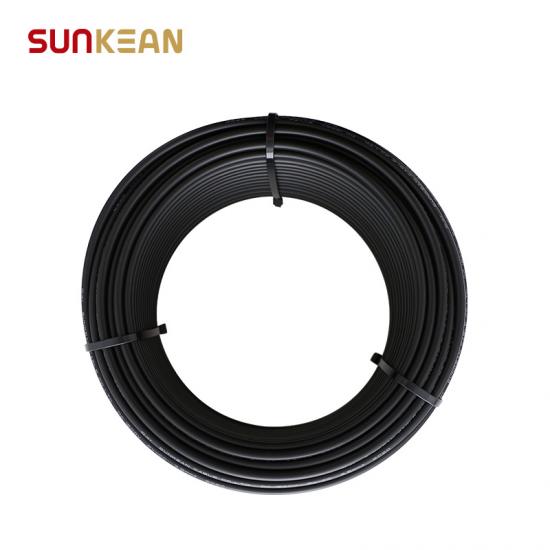

Tinned Copper Single Core PVCQ Solar PV Cable for solar plant
Tinned copper PVCQ DC solar cables used in DC rated voltage below 1500V（DC）solar power system，between the solar panel modules, solar panel module & junction box & power controller.
Product description:
Rated: -40°C to +90°C
Cold Bending Test : JIS C3660-1-4
Flame Test : JIS C 3665-1-2
Voltage Rating
DC: 1500V
Test Voltage
3000V AC
Temperature Rating
Testing Standard
|
Cable Name |
Cross Section
(mm2）
|
Construction
(No./mm)
|
Insulation O.D.
(mm)
|
Cable O.D.
(mm)
|
Conductor resistance
Max (?/km, 20°C)
|
|
S-JET PV-CQ (Tinned Copper) |
3.5 | 48/0.30 | 3.80 | 6.30 | 5.41 |
| 4.0 | 52/0.30 | 3.90 | 6.40 | 5.06 | |
| 5.5 | 78/0.30 | 4.50 | 7.00 | 3.47 | |
| 6.0 | 84/0.30 | 4.60 | 7.10 | 3.39 | |
| 10.0 | 77/0.40 | 5.65 | 8.00 | 1.95 |
Advantages:
(1) Dual wall insulation, Electron beam cross-linked.
(2) Resistance to UV, water, ozone, fluids, salt, hydrolyzation, general weathering.
(3) Halogen free, flame, retardant, low toxicity.
(4) Flexibility and stripping performance.
(5) High current carrying capacity.
(6) Resistance to abrasion.
(7) High temperature resistance, material will not melt or flow.
(8) Long lifespan ,over 25 years (90°C).
(9) Corrosion resistance, especially in wet or saltwater environments.
(10) Extended cable life.

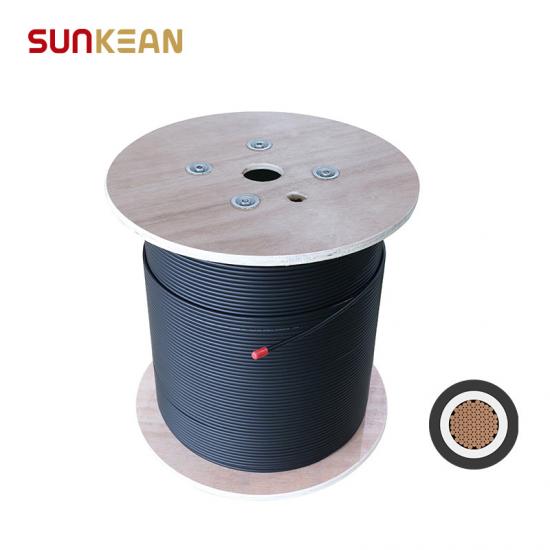

Packing & Delivery:
