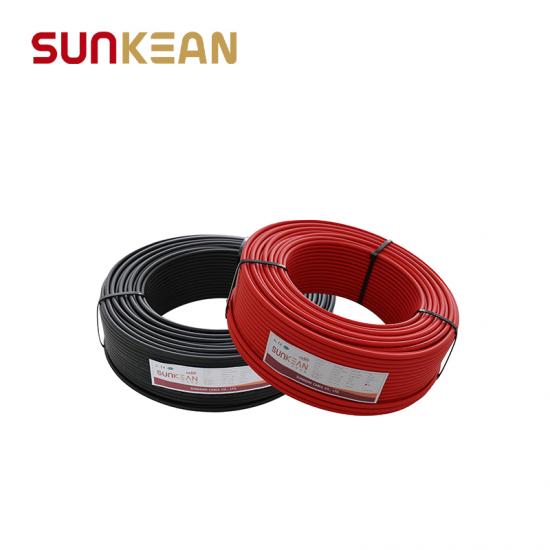

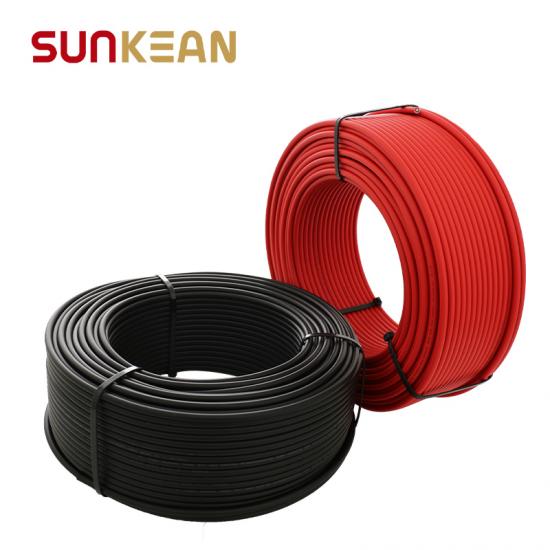

CPR Dca Direct Burial Wire 4mm2 Single Core EN50618 H1Z2Z2-K AD7 Water-resistant Solar Cable
We are one of the Chinese PV cable manufacturers and suppliers. Our SUNKEAN® H122Z2-K cables meet CPR Dca certifications valid for both solar plants and rooftop PV installations, which can simplify your PV cable stock needs.
Product Description:
|
Voltage Rating(Uo/U) |
DC: 1500V |
Test Voltage |
6500V AC |
|
Temperature Rating |
Rated: -40°C to +90°C Max. conductor temp: +120°C Short Circuit: +250°C |
Minimum Bending Radius |
?≤12mm 4 x overall diameter ?>12mm 10 x overall diameter |
|
Testing Standard |
Smoke Density Test: transmittance≥60% EN50618 Cold Bending Test : -40°C±2°C no crack EN60811-504 |
|
|
|
Cross Section
(mm2）
|
Construction
(No./mm)
|
Insulation O.D.
(mm)
|
Cable O.D.
(mm)
|
Conductor resistance
Max (?/km)
|
| 1.5 |
30/0.25 |
3.05 |
4.7 |
13.7 |
| 2.5 |
49/0.25 |
3.50 |
5.2 |
8.21 |
| 4.0 |
56/0.285 |
3.85 |
5.5 |
5.09 |
| 6.0 |
84/0.285 |
4.45 |
6.1 |
3.39 |
| 10 |
77/0.4 |
5.5 |
7.2 |
1.85 |
| 16 |
126/0.4 |
6.9 |
8.8 |
1.24 |
| 25 |
196/0.4 |
8.7 |
10.8 |
0.795 |
| 35 |
276/0.4 |
10 |
12.4 |
0.565 |
Certifications:
CPR Dca Direct Burial Wire 4mm2 Single Core EN50618 H1Z2Z2-K AD7 Water-resistant Solar Cable Obtained CPR(Dca) certification and passed Direct burial test report and AD7 waterproof test.
CPR comes from the abbreviation of "Construction Product Regulation". If a cable has been tested for its fireproof performance and meets all the commonly used limits, it is categorized in the CPR classes from ACA to FCA according to certain grading criteria. CPR(Dca) represents high flame retardance.
Direct-burial cable is a kind of communication or transmission cable which is specially designed to be buried under the ground without any other cover, sheath, or duct to protect it.
PV cables with protection class AD7 can withstand short-term immersion in water. According to EN 50618, solar cables type H1Z2Z2-K are protected up to protection class AD7, i.e. against short-term immersion in water.
SUNKEAN CPR(Dca) certification TUV AD7 IPX7 Test Report Direct Burial Test Report

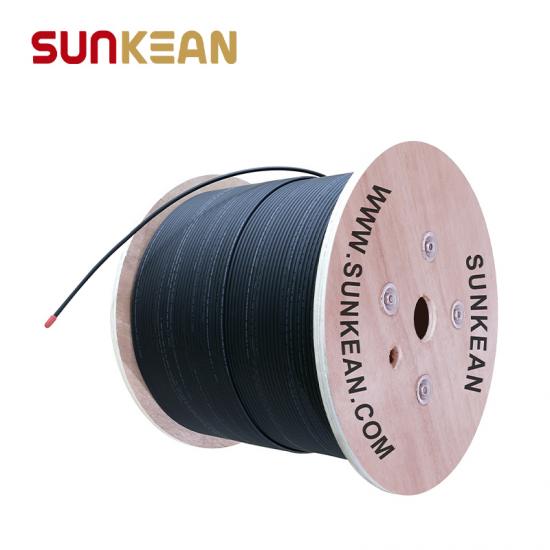

Packing & Delivery:
Application Scenario:
Global Exhibitions:
Company Profile:
SUNKEAN is a fast-growing solar company, as well as a turnkey solution provider in China. Products cover panel solar systems, solar cables, solar extension cables, home energy solar systems, Solar power fences, three-phase inverters, etc solar products.SUNKEAN is committed to providing the best solutions for users, installers, investors, and all stakeholders. We always take responsibility for customers’ demands. We make our effort for innovations and breakthroughs.
FAQ
Q: How could I get the sample ?
A: We have different kinds of XLPE insulation PV solar cable, photovoltaic cable, and xlpe solar cable in stock, you can require samples to check our quality. Samples are free provided, you only need to pay the courier fees.
Q: How long is the delivery time?
A1)For Sample: 1-3 Days;
A2)For small Orders: 3-10 Days;
A3)For mass Orders:15-20 Days;
Q: What is your terms of payment?
A: Payment<= 1000 USD, 100% in advance. Payment>= 1000 USD, 30% T/T in advance , balance before shipment or against B/L.
If you are an end users, we can offer more detailed information to you. Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
