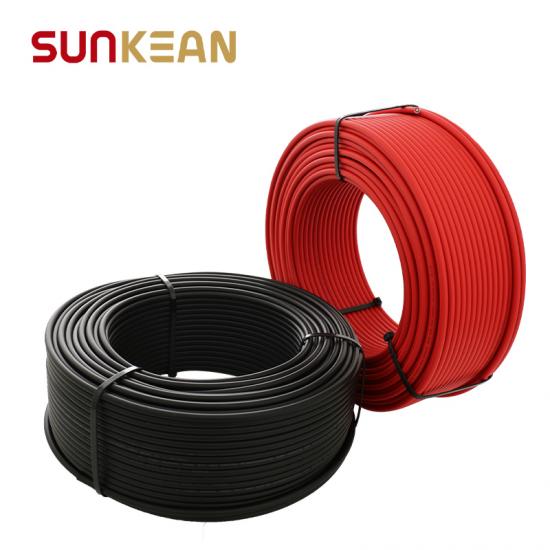

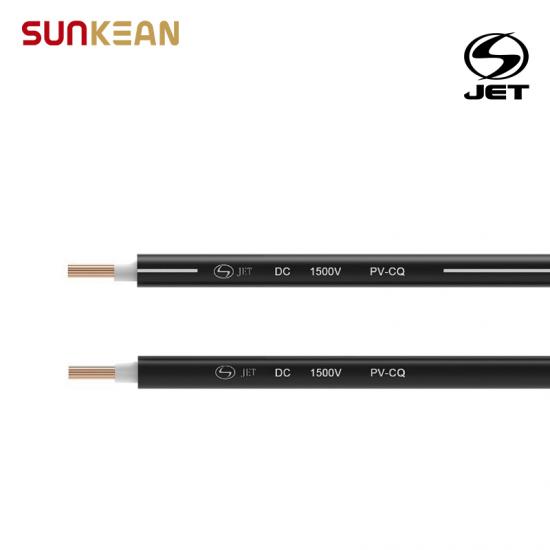

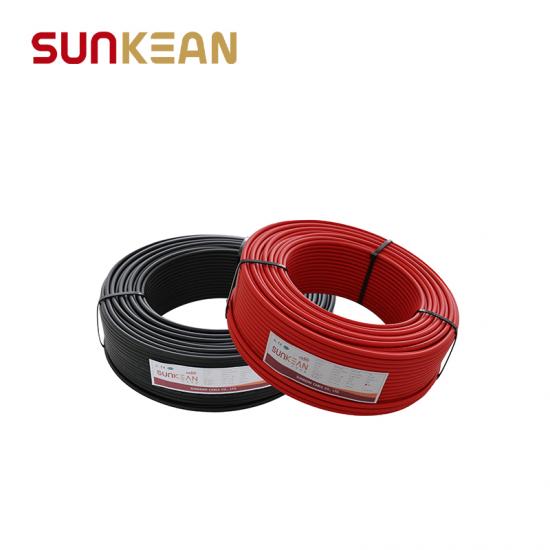

CPR Cca Direct Burial Wire 4mm2 Single Core EN50618 H1Z2Z2-K AD7 Water-resistant Solar Cable
Regardless of their size, PV installations require high-quality cables that provide excellent mechanical properties and superior sunlight resistance for outdoor installations, easy handling, and extra flexibility, as well as maximum water performance.
Product Description:
|
Voltage Rating(Uo/U) |
DC: 1500V |
Test Voltage |
6500V AC |
|
Temperature Rating |
Rated: -40°C to +90°C Max. conductor temp: +120°C Short Circuit: +250°C |
Minimum Bending Radius |
?≤12mm 4 x overall diameter ?>12mm 10 x overall diameter |
|
Protection level against water ingress |
AD7 | CPR | Cca-s1,d0,a2 |
|
Cross Section
(mm2）
|
Construction
(No./mm)
|
Insulation O.D.
(mm)
|
Cable O.D.
(mm)
|
Conductor resistance
Max (?/km)
|
| 4.0 |
56/0.285 |
3.85 |
5.5 |
5.09 |
Certifications:
SUNKEAN CPR Cca Direct Burial Wire 4mm2 Single Core EN50618 H1Z2Z2-K AD7 Water-resistant Solar Cable Obtained CPR(Cca) certification and passed Direct burial test report and AD7 waterproof test.CPR comes from the abbreviation of "Construction Product Regulation". If a cable has been tested for its own fireproof performance and meets all the commonly used limits, it is categorized in the CPR classes from ACA to FCA according to certain grading criteria. CPR(Cca) represents higher flame retardance than CPR(Dca).
Direct-burial cable is a kind of communication or transmission cable which is specially designed to be buried under the ground without any other cover, sheath, or duct to protect it.
PV cables with protection class AD7 can withstand short-term immersion in water. According to EN 50618, solar cables type H1Z2Z2-K are protected up to protection class AD7, i.e. against short-term immersion in water.
SUNKEAN CPR(Cca) certification TUV AD7 IPX7 Test Report Direct Burial Test Report

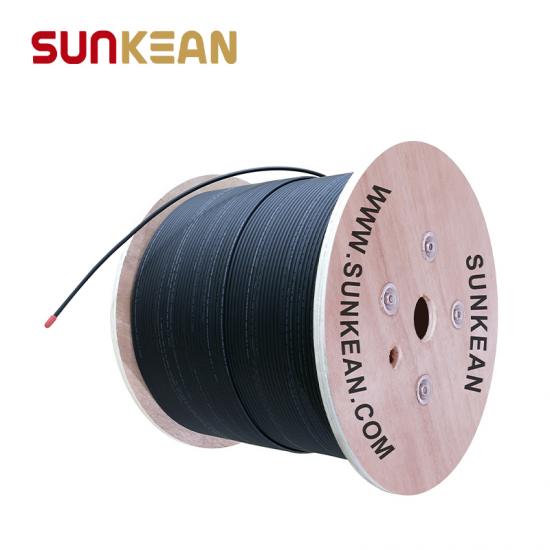

Packing & Delivery:
Application Scenario:
Global Exhibitions:
Company Profile:
SUNKEAN is a fast-growing solar company, as well as a turnkey solution provider in China. Products cover panel solar systems, solar cables, solar extension cables, home energy solar systems, Solar power fences, three-phase inverters, etc solar products.SUNKEAN is committed to providing the best solutions for users, installers, investors, and all stakeholders. We always take responsibility for customers’ demands. We make our effort for innovations and breakthroughs.
