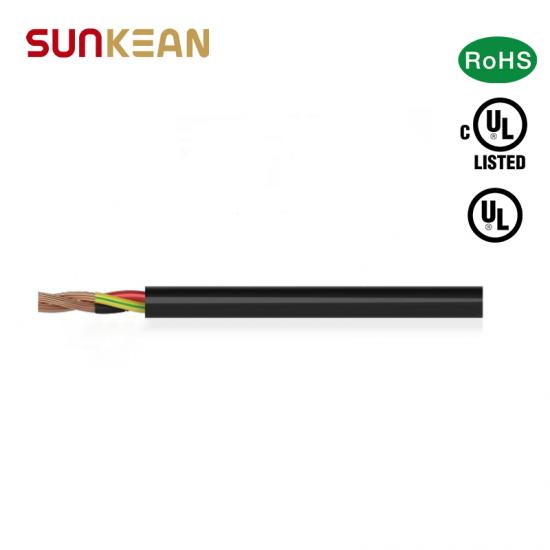

TC-ER AC Cable Twin Core 16 AWG Cable Cul Certification Direct Burial Wire
The cable is suitable for power, lighting, control, and signal circuits, mostly used on cable trays or in cable slots, and outdoor places supported by slings. It can also be used in wind power generation, installed in the wind turbine, through the cable bridge, or pipe laying.
Product Description:
| Conductor: |
Multiple strands soft annealed copper wire
|
|
Insulation: |
XLPO |
| Outer sheath insulation: | XLPO |
| Rated voltage: | 600V |
| Number of cores: | ≥2 |
| Cross section: | 18AWG~200kcmil |
| Insulation color: |
Black & Red & Yellow/Green or other colors |
|
Max. conductor operating temperature: |
﹣40°C to +90°C |
|
Standards applied: |
UL 1277, UL44,CSA, RoHs Compliant |
|
Conductor No. |
Cross Section (AWG) |
Conductor Strands |
Conducor O.D. (mm) |
Insulation O.D. (mm) |
Jacket O.D.
(mm)
|
Max.20℃ DC resistance of conductor(Ω/km)
|
| 2 | 18 | 16/0.254 |
1.17 |
2.80 | 8.4 |
21.8 |
|
16 |
26/0.254 |
1.49 |
3.10 | 9.0 |
13.7 |
|
|
14 |
41/0.254 |
1.87 |
3.50 | 9.8 |
8.62 |
|
|
12 |
65/0.254 |
2.36 |
4.00 | 10.8 |
5.43 |
|
|
10 |
105/0.254 |
3.00 |
4.60 | 12.0 |
3.409 |
|
| 3 |
18 |
16/0.254 |
1.17 |
2.80 | 8.8 |
21.8 |
|
16 |
26/0.254 |
1.49 |
3.10 | 9.6 |
13.7 |
|
|
14 |
41/0.254 |
1.87 |
3.50 | 10.4 |
8.62 |
|
|
12 |
65/0.254 | 2.36 | 4.00 | 11.5 | 5.43 | |
|
10 |
105/0.254 |
3.00 | 4.60 | 12.8 | 3.409 | |
| 4 |
18 |
16/0.254 |
1.17 | 2.80 | 9.6 | 21.8 |
|
16 |
26/0.254 | 1.49 | 3.10 | 10.4 | 13.7 | |
|
14 |
41/0.254 |
1.87 | 3.50 | 11.4 | 8.62 | |
|
12 |
65/0.254 |
2.36 | 4.00 | 12.6 | 5.43 | |
|
10 |
105/0.254 |
3.00 | 4.60 | 14.0 | 3.409 | |
| 5 |
18 |
16/0.254 |
1.17 | 2.80 | 10.6 | 21.8 |
|
16 |
26/0.254 |
1.49 | 3.10 | 11.5 | 13.7 | |
|
14 |
41/0.254 |
1.87 | 3.50 | 12.6 |
8.62 |
|
|
12 |
65/0.254 |
2.36 | 4.00 | 14.6 |
5.43 |
|
|
10 |
105/0.254 |
3.00 | 4.60 | 16.2 |
3.409 |
