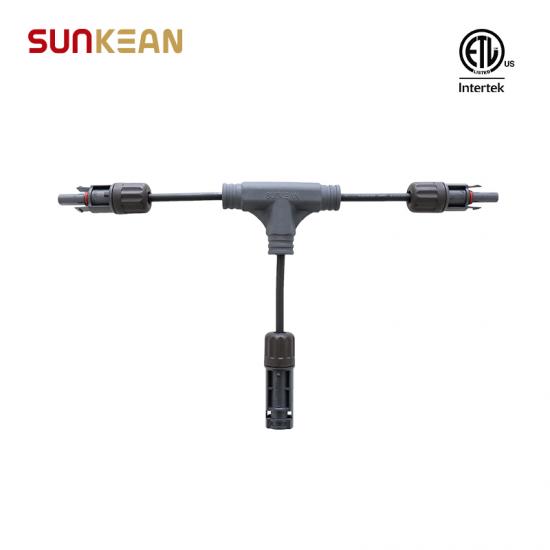

T type branch harness rated for 1500V solar system
SUNKEAN T Branch harness have IP68 water-proof rating and can be used in a wide operating temperature range from -40 °C to +90 °C. Lower contact resistance and higher current transfer capability ensure high product efficiency.
T Branch Technical Data:
|
Rated Voltage |
DC 1500V |
| Cable O.D. |
2.5mm2/14AWG, 4mm2/12AWG, 6mm2/10AWG, 10mm2/8AWG, 16mm2/6AWG |
| Ambient Temperature |
-40℃ up to +60℃ |
| Interrupting Ratings |
30kA |
| Insulation Material |
Special-Hotmelt, UV-stable, IP68 (please take note of connector's lP-protection) |
|
Flame Class |
Self-extinguishing UL94-V1 |
|
Over Voltage Category/Pollution Degree |
CAT III/3 |
| Safety Degree | II |

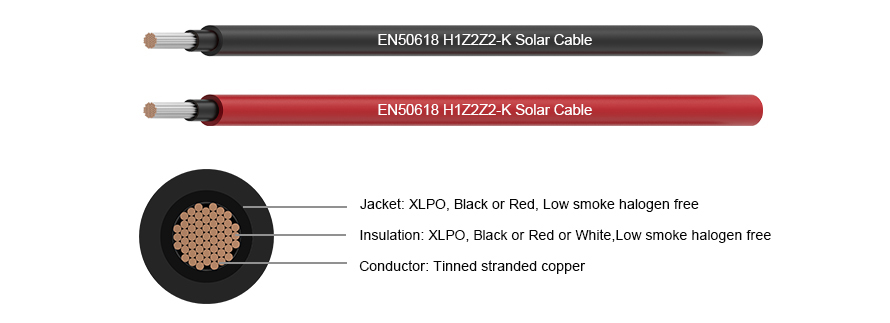

Description of T type Solar branch Cables:
- Dual wall insulation, Electron beam cross-linked
- Excellent resistance to UV, oil, greases, oxygen and ozone
- Excellent resistance to abrasion Halogen free, flame retardant, low toxicity, ROHS
- Excellent flexibility and stripping performance
- High Voltage and Current carrying capacity
- TUV, CE, ISO approved
*Can be customized according to customer requirements.
Description of Solar Waterproof Connector:
- IP68 Waterproof and UV resistant, suitable for outdoor terrible environments
- Safe ,Simple and Quick on-site processing
- Mating safety provided by keyed housings
- Multiple plugging and unplugging cycles
- Compatible with different size of PV cables commonly
- High current carrying capacity
*Can be customized according to customer requirements.
