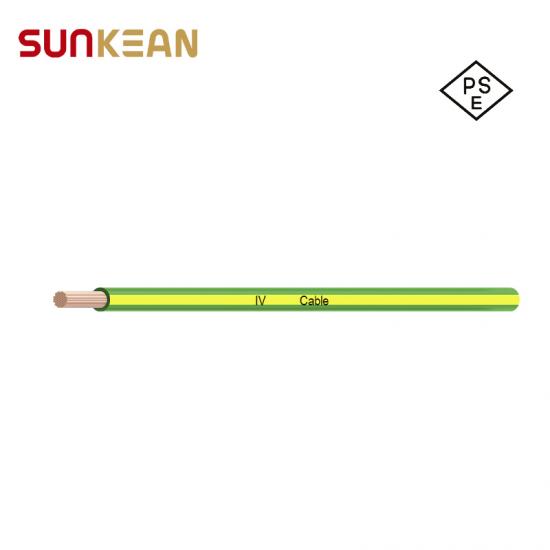

IV Grounding Cable 100mm2 PSE Standard PVC Insulation Japanese Certification Cable
IV Grounding Cable 100mm2 PSE Standard PVC Insulation Japanese Certification Cable is used for wiring of general electrical structures or devices of 600V or lower, this product is especially used frequently in the wiring of disaster prevention facilities. Excellent thermal resistance Safe with self-extinguishing insulator. Convenient circuit identification as different colors are applied to the insulator layer. Easy to handle.
|
Cable Name |
Cross Section
(mm2）
|
Construction
(No./mm)
|
Conductor Resistance
Max (?/km, 20℃)
|
Cable O.D.
(mm)
|
|
IV Grounding Cable
PSE certified
|
2.0 |
7/0.6 |
9.24 |
3.4 |
|
3.5 |
7/0.8 |
5.20 |
4 |
|
|
5.5 |
7/1.0 |
3.33 |
5 |
|
|
8.0 |
7/1.2 |
2.31 |
6 |
|
|
14 |
7/1.6 |
1.30 |
7.60 |
|
|
22 |
7/2.00 |
0.824 |
9.20 |
|
|
38 |
7/2.60 |
0.487 |
11.50 |
|
|
60 |
7/2.00 |
0.303 |
14.00 |
|
|
100 |
7/2.60 |
0.180 |
17.00 |
|

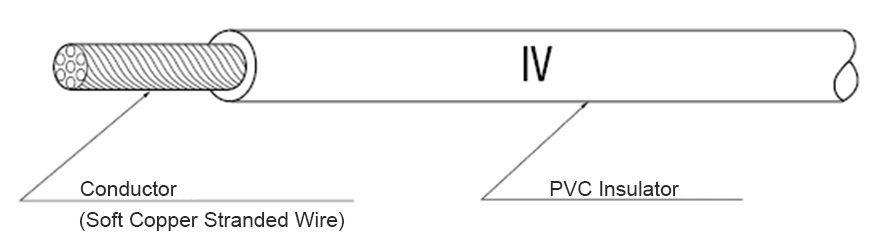

Conductor： |
Stranded Bare Copper |
|
Insulation: |
PVC |
|
Insulation color: |
Black、White、Red、Green、Yellow、Blue |
|
Rated voltage: |
600V |
| Test voltage: |
3000V |
|
Product Standard Certification: |
PSE |
|
Reference Standard： |
JIS C 3307 |
