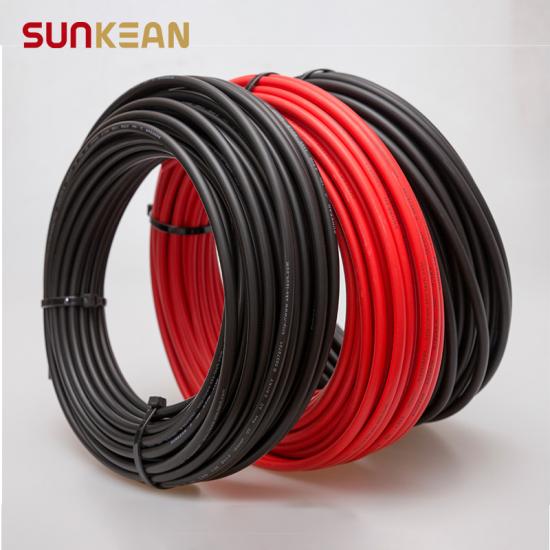

EN 50618 H1Z2Z2-K 6mm2 Twin Core Solar Cable SUNKEAN PV TUV Rhein Certified Cable
*Electron-beam cross-linked compounds;
*20 years of Production Experience In Solar Cable
*Stable conduction and reduced maintenance costs
*Anticipated service life -25 years outdoors
*Free Sample is available, Contact us now
Product description
|
Voltage Rating(Uo/U) |
DC: 1500V |
Test Voltage |
6500V AC |
|
Temperature Rating |
Rated: -40°C to +90°C Max.conductor temp: +120°C Short Circuit: +250°C |
Minimum Bending Radius |
?≤12mm 4 x overall diameter ?>12mm 10 x overall diameter |
|
Testing Standard |
Smoke Density Test: transmittance≥60% EN50618 Cold Bending Test : -40°C±2°C no crack EN60811-504 |
|
|
|
Cable Name |
Cross Section
(mm2）
|
Construction
(No./mm)
|
Conductor resistance
Max (?/km)
|
Cable O.D.
(mm)
|
|
EN50618 H1Z2Z2-K Twin Core
EN50618
|
2*1.5 | 30/0.25 | 13.7 | 4.70*9.60 |
| 2*2.5 | 49/0.25 | 8.21 | 5.20*10.60 | |
|
2*4.0 |
56/0.285 |
5.09 |
5.50*11.20 |
|
|
2*6.0 |
84/0.285 |
3.39 |
6.10*12.40 |
|
| 2*10 | 77/0.40 | 1.85 | 7.20*14.70 | |
| 2*16 | 126/0.40 | 1.24 | 8.80*17.90 | |
| 2*25 | 196/0.40 | 0.795 | 10.80*21.90 | |
| 2*35 | 276/0.40 | 0.565 | 12.40*25.10 |
Packing & Delivery:
Application Scenario:
Global Exhibitions:
Company Profile:
SUNKEAN is a fast-growing solar company,as well as a turnkey solution provider in China. Products cover PV modules, mini solar inverters, single phase full bridge inverters, single core solar cable, wire mesh fence, inverters etc solar products .SUNKEAN is committed to providing the best solutions for users, installers, investors, and all stakeholders. We always take responsibility for customer’s demands. We make our effort for innovations and breakthroughs.
FAQ
Q: How could I get the sample ?
A: We have different kinds of XLPE insulation PV solar cable, photovoltaic cable, and xlpe solar cable in stock, you can require for samples to check our quality. Samples are free provided, you only need to pay the courier fees.
Q: How long is the delivery time?
A1)For Sample: 1-3 Days;
A2)For small Orders: 3-10 Days;
A3)For mass Orders:15-20 Days;
Q: What are your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance,balance before shipment or against B/L.
If you are an end users, we can offer more detail information to you. Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
