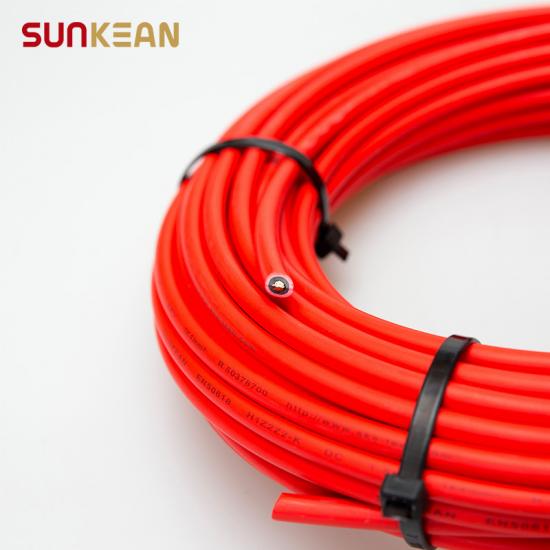

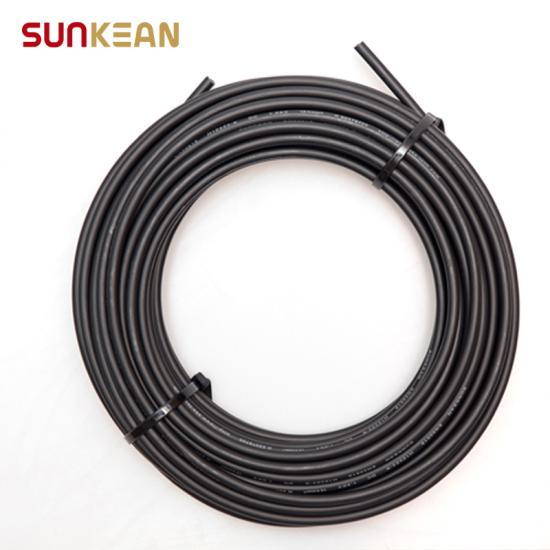

EN 50618 H1Z2Z2-K 1.5mm2 Single Core Solar SUNKEAN TUV Rhein Certified Cabl
*EN50618 Approval
*Electron-beam cross-linked compounds
*UV, ozone, and hydrolysis resistant
*High-temperature resistance, the materials do not melt or flow
*Good cold flexibility
*Very long service life ＞25 years at 90℃
*Compatible with all popular connectors
Product Description:
|
Voltage Rating(Uo/U) |
DC: 1500V |
Test Voltage |
6500V AC |
|
Temperature Rating |
Rated: -40°C to +90°C Max. conductor temp: +120°C Short Circuit: +250°C |
Minimum Bending Radius |
?≤12mm 4 x overall diameter ?>12mm 10 x overall diameter |
|
Testing Standard |
Smoke Density Test: transmittance≥60% EN50618 Cold Bending Test : -40°C±2°C no crack EN60811-504 |
|
|
|
Cable Name |
Cross Section
(mm2）
|
Construction
(No./mm)
|
Insulation O.D.
(mm)
|
Cable O.D. (mm) |
Conductor resistance
Max (?/km)
|
|
H1Z2Z2-K Single Core
EN50618
|
1.5 |
30/0.25 |
3.05 |
4.7 |
13.7 |
| 2.5 |
49/0.25 |
3.5 |
5.2 |
8.21 |
|
| 4.0 |
56/0.285 |
3.85 |
5.5 |
5.09 |
|
| 6.0 |
84/0.285 |
4.45 |
6.1 |
3.39 |
|
| 10 |
77/0.4 |
5.5 |
7.2 |
1.85 |
|
| 16 |
126/0.4 |
6.9 |
8.8 |
1.24 |
|
| 25 |
196/0.4 |
8.7 |
10.8 |
0.795 |
|
| 35 |
276/0.4 |
10 |
12.4 |
0.565 |
Packing & Delivery:
Application Scenario:
Global Exhibitions:
Company Profile:
SUNKEAN is a fast-growing solar company, as well as a turnkey solution provider in China. Products cover panel solar systems, solar cables, solar extension cables, home energy solar systems, Solar power fences, three-phase inverters, etc solar products.SUNKEAN is committed to providing the best solutions for users, installers, investors, and all stakeholders. We always take responsibility for customers’ demands. We make our effort for innovations and breakthroughs.
FAQ
Q: How could I get the sample?
A: We have different kinds of XLPE insulation PV solar cable, photovoltaic cable, and XLPE solar cable in stock, you can require for samples to check our quality. Samples are free provided, you only need to pay the courier fees.
Q: How long is the delivery time?
A1)For Sample: 1-3 Days;
A2)For small Orders: 3-10 Days;
A3)For mass Orders:15-20 Days;
Q: What is your terms of payment?
A: Payment<= 1000 USD, 100% in advance. Payment>= 1000 USD, 30% T/T in advance, balance before shipment or against B/L.
If you are an end user, we can offer more detailed information to you. Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
