China flexible 375w MWT Mono Perc pv module solar panel
The 375W flexible Solar panel adopt light and thin design. Ultra-thin silicon wafers with advanced organic polymer encapsulation materials, minimum bending radius reach 0.30mm, fit all kinds of curved surface perfectly.
Product Characteristics:
| Mechanical Characteristics | |
|
Installation Module Dimension (L×W×H) |
1840mmx1040mmx2.5mm |
| Weight | 5.7kg |
|
Back material |
Back Sheet(white) |
|
Cell (quantity / material / type / dimensions) |
126(21x6) / Mono / Half-cell |
|
Encapsulant |
POE |
| Frame | None |
|
Junction box(protection degree) |
IP68 |
| Cable(length/cross-section area) |
Customizable / 4mm2 |
| Connector | MC4 Compatible |
| Bending radius | 0.3m |
Product Parameter:
| Type | SKE375QHES |
|
Electrical Characteristics (STC*) : |
|
| Max-Power(Pm) | 375 |
| Power Tolerance | 0 ~ +5 |
| Max-Power Voltage(Vm) | 35.3 |
| Max-Power Current(Im) | 10.62 |
| Open-Circuit Voltage(Voc) | 42.8 |
| Short-Circuit Current(Isc) | 11.23 |
| Effective Module Efficiency(ηm) | 21.2 |
|
Electrical Characteristics (NMOT*) : |
|
| Max-Power(Pm) | 282 |
| Max-Power Voltage(Vm) | 33.2 |
| Max-Power Current(Im) | 8.49 |
| Open-Circuit Voltage (V) | 40.3 |
| Short-Circuit Current (Isc) | 9.05 |
| Max System Voltage (V DC) |
DC1500V(IEC) |
|
Operating Temperature(°C) |
-40°C ~ +85°C |
|
Max Series Fuse Rating |
18A |
*STC: AM=1.5, Irradiation 1000W/m2, Module Temperature 25℃ Power Tolerance ±3%
*NMOT: Irradiation 800W/m2, Ambient temperature 20℃, Wind Speed 1m/s

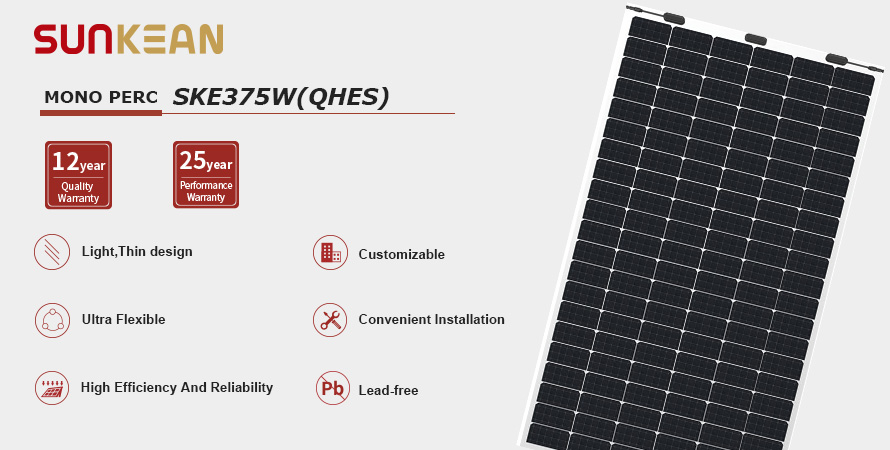

Product Features:
-
Light，Thin design
5.7kg weight, 2.5mm thickness, match various requirements for low-load projects
-

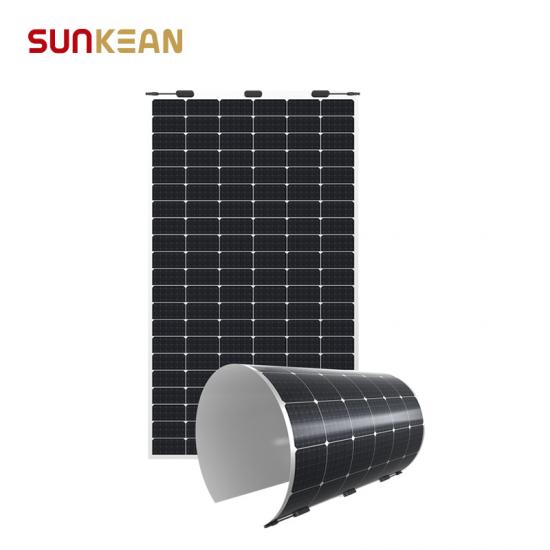

Ultra Flexible
Ultra-thin silicon wafers with advanced organic polymer encapsulation materials, minimum bending radius reach 0.30zm，?t all kinds of curved surface perfectly
-
High Efficiency And Reliability
Busbar-free design increases cell conversion e?ciency，more power output can be achieved at low irradiance conditions
-
Customizable
Customized design for di?erent scenarios
-
Convenient Installation
Easy installation and convenient transportation with lower cost
-
Lead-free
Eco-friendly PV design achieves lead-free MWT module without soldering materials
Solar panel production process:
Packing & Delivery:
Application:
Company Profile:
SUNKEAN is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover Mono perc solar panel,house solar power system, PV connectors, 100 watt solar panel, photovoltaic inverter etc solar products .SUNKEAN is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.
If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
