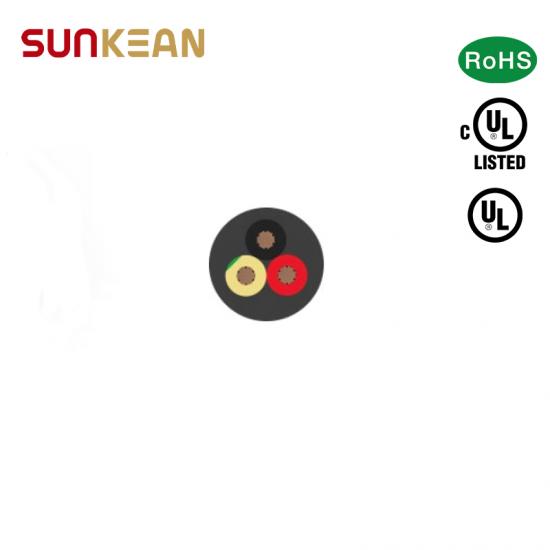

TC-ER AC Cable 3 Core 18 AWG Cable Cul Certification Direct Burial Wire
The cable is suitable for power, lighting, control, and signal circuits, mostly used on cable trays or in cable slots, and outdoor places supported by slings. It can also be used in wind power generation, installed in the wind turbine, through the cable bridge, or pipe laying.
Product Description:
| Conductor: |
Multiple strands soft annealed copper wire
|
|
Insulation: |
XLPO |
| Outer sheath insulation: | XLPO |
| Rated voltage: | 600V |
| Number of cores: | ≥2 |
| Cross section: | 18AWG~200kcmil |
| Insulation color: |
Black & Red & Yellow/Green or other colors |
|
Max. conductor operating temperature: |
﹣40°C to +90°C |
|
Standards applied: |
UL 1277, UL44,CSA, RoHs Compliant |
|
Conductor No. |
Cross Section (AWG) |
Conductor Strands |
Conducor O.D. (mm) |
Insulation O.D. (mm) |
Jacket O.D.
(mm)
|
Max.20℃ DC resistance of conductor(Ω/km)
|
| 2 | 18 | 16/0.254 |
1.17 |
2.80 | 8.4 |
21.8 |
|
16 |
26/0.254 |
1.49 |
3.10 | 9.0 |
13.7 |
|
|
14 |
41/0.254 |
1.87 |
3.50 | 9.8 |
8.62 |
|
|
12 |
65/0.254 |
2.36 |
4.00 | 10.8 |
5.43 |
|
|
10 |
105/0.254 |
3.00 |
4.60 | 12.0 |
3.409 |
|
| 3 |
18 |
16/0.254 |
1.17 |
2.80 | 8.8 |
21.8 |
|
16 |
26/0.254 |
1.49 |
3.10 | 9.6 |
13.7 |
|
|
14 |
41/0.254 |
1.87 |
3.50 | 10.4 |
8.62 |
|
|
12 |
65/0.254 | 2.36 | 4.00 | 11.5 | 5.43 | |
|
10 |
105/0.254 |
3.00 | 4.60 | 12.8 | 3.409 | |
| 4 |
18 |
16/0.254 |
1.17 | 2.80 | 9.6 | 21.8 |
|
16 |
26/0.254 | 1.49 | 3.10 | 10.4 | 13.7 | |
|
14 |
41/0.254 |
1.87 | 3.50 | 11.4 | 8.62 | |
|
12 |
65/0.254 |
2.36 | 4.00 | 12.6 | 5.43 | |
|
10 |
105/0.254 |
3.00 | 4.60 | 14.0 | 3.409 | |
| 5 |
18 |
16/0.254 |
1.17 | 2.80 | 10.6 | 21.8 |
|
16 |
26/0.254 |
1.49 | 3.10 | 11.5 | 13.7 | |
|
14 |
41/0.254 |
1.87 | 3.50 | 12.6 |
8.62 |
|
|
12 |
65/0.254 |
2.36 | 4.00 | 14.6 |
5.43 |
|
|
10 |
105/0.254 |
3.00 | 4.60 | 16.2 |
3.409 |
Packing & Delivery:
Application Scenario:
Global Exhibitions:
Company Profile:
SUNKEAN is a fast-growing solar company, as well as a turnkey solution provider in China. Products cover panel solar systems, solar cables, solar extension cables, home energy solar systems, Solar power fences, three phase inverters etc solar products.SUNKEAN is committed to providing the best solutions for users, installers, investors, and all stakeholders. We always take responsibility for customers’ demands. We make our effort for innovations and breakthroughs.
FAQ
Q: How could I get the sample?
A: We have different kinds of XLPE insulation pv solar cable, photovoltaic cable, and xlpe solar cable in stock, you can require samples to check our quality. Samples are free provided, you only need to pay the courier fees.
Q: How long is the delivery time?
A1)For Sample: 1-3 Days;
A2)For small Orders: 3-10 Days;
A3)For mass Orders:15-20 Days;
Q: What are your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance,balance before shipment or against B/L.
If you are an end user, we can offer more detailed information to you. Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
